OEM Optical Solutions for Analytical Instruments
OEM Optical Solutions for Analytical Instruments
Labsphere supports analytical instrument manufacturers to deliver repeatable spectroscopy solutions that include measurement of reflectance, transmittance, absorbance, fluorescence, and associated spectral measurement workflows.
Why Instrument Manufacturers work with Labsphere
- Purpose-built optical accessories and subsystems
- Balance performance requirements with commercialization needs
- Deep expertise in integrating sphere design
- Advanced knowledge of optical coatings and reflectance materials
- Provide mechanical integration support
- Apply production-focused manufacturing expertise for scalability
- Accelerate development from concept to market-ready solutions
Contact Labsphere to discuss integrating sphere-based accessories, custom sample interfaces, reflectance materials, and optical sub-assemblies designed around your instrument requirements.
Contact for Pricing
OEM Optical Components that Enable Stable and Repeatable Optical Performance
Analytical instruments depend on stable and repeatable optical performance. In spectrophotometers and spectrofluorometers, the optical accessory or subsystem often determines how consistently light is collected, distributed, and measured. Labsphere provides OEM support for integrating sphere-based components that help instrument manufacturers improve measurement consistency, simplify optical design, and transition from prototype concepts to production-ready assemblies.

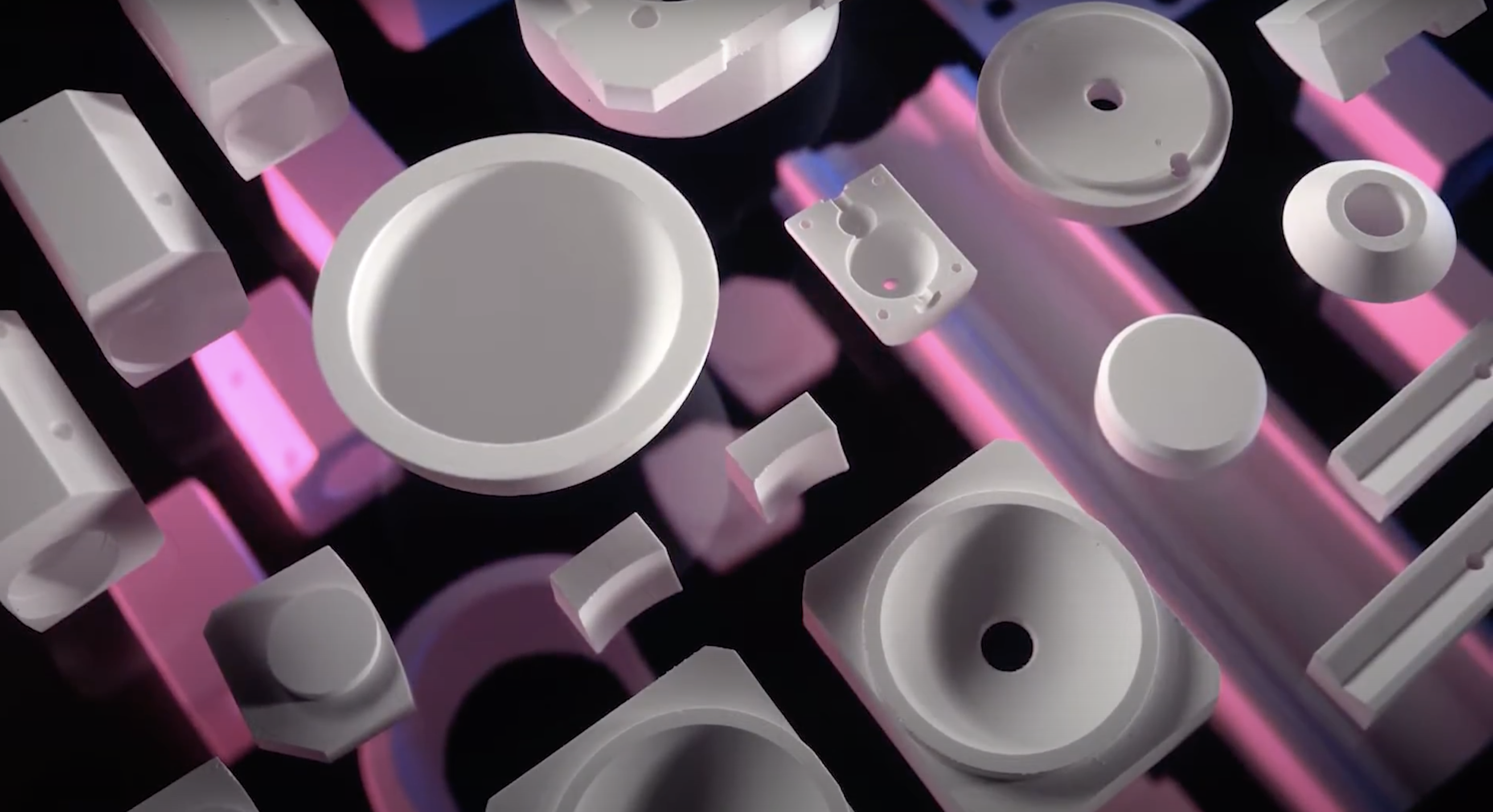

Our work can include integrating spheres, sample holders, detector interfaces, optical coatings, diffuse reflectance materials, reference components, and custom mechanical interfaces. Each solution is developed around the instrument manufacturer’s wavelength range, sample geometry, measurement mode, detector configuration, and production requirements.
- Systems Engineering
- Optical and Electrical Design
- Integrating Sphere Design

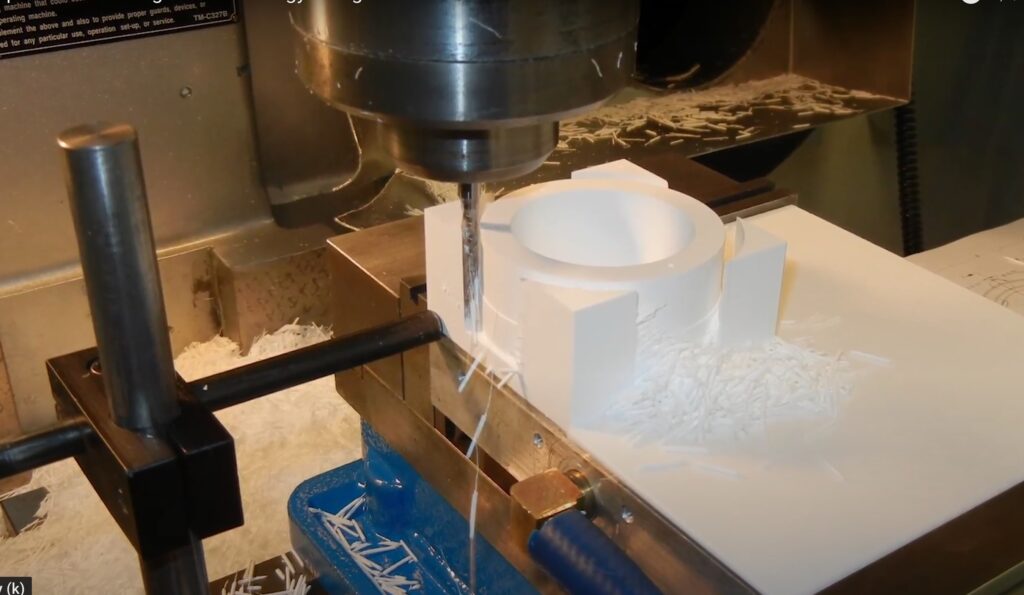

- Reflectance Materials and Coatings
- Mechanical Integration
- Prototype-to-Production Co-Development and Support
OEM Design Considerations
Every analytical instrument program has unique performance and integration requirements. Labsphere works with OEM engineering teams to evaluate the practical design tradeoffs that influence accessory performance, manufacturability, and long-term support. Design considerations include:
- Optical Geometry
- Material Selection
- Sample Interface
- Mechanical Integration
- Production Needs
Key Performance Metrics
- Optical Throughput
- Measurement Repeatability
- Spectral Range Compatibility
- Stray Light and Baffling Performance
- Mechanical Fit and Stability
- Production Repeatability

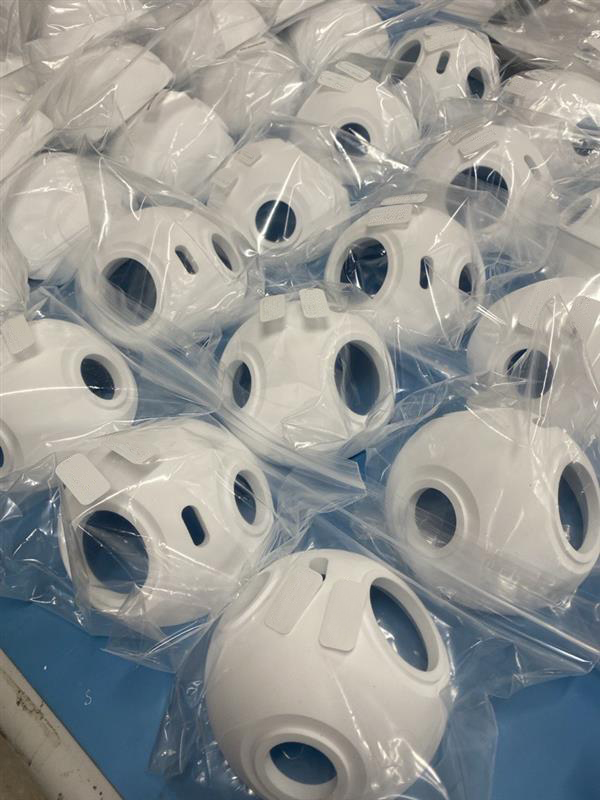

Integrating Sphere-Based Accessories for Spectrophotometers and Spectrofluorometers
Labsphere develops integrating sphere-based accessories that can be configured around the instrument optical path, sample presentation requirements, detector interface, and desired measurement mode. Typical accessory types include:
- Diffuse Reflectance
- Total Transmittance
- Sample Holders and Fixtures
- Reference Components
- Calibration-related Assemblies
- Custom Port Geometries, Baffling, and Detector Interfaces
Spectrofluorometer and photoluminescence systems require careful management of excitation light, emitted light, sample placement, and detector coupling. Our sphere-based accessory concepts improve light collection and help simplify the optical architecture of fluorescence measurement instruments. Typical accessory type includes:
- Integrating sphere modules for fluorescence and photoluminescence collection
- Sample chambers designed for repeatable positioning and collection geometry
- Excitation and emission port configurations aligned to the instrument architecture
- Detector coupling features and optical interfaces for efficient signal collection
- Reference and validation accessories that support consistent measurement workflows
