CDS Spectrometers
Labsphere’s CDS Spectrometers are the core products for spectral characterization and calibration in our IllumiaPlus, IllumiaPro2, IllumiaPro2-UV, HELIOSPlus and SpectrALL products.
Measurements:
Spectral Flux
Spectral Irradiance
Spectral Radiance
$6,080.00 – $39,290.00
*Select Product Option First

With integrated neutral density filters the CDS-3020 and CDS-3030 spectrometers provide a high dynamic range with exceptional measurement sensitivity. These spectrometers are ideal for measuring a broad range of sources from LEDs to luminaire and fixtures in Labsphere’s large areas IllumiaPlus systems.

The TE Cooled back thinned array, internal shutter for real time dark correction, and straylight corrected features of the of the CDS-2600s are the reason these spectrometers are the most practical solution for UV-VIS spectral radiometry.
Specifications
The CDS spectrometers are available with options on dynamic range, wavelength range, thermal control, and form factor.
CDS-3030
- Spectral Range 360 nm to 1100 nm
- Dynamic Range 1000000:1
- Thermal Control Yes
- Size 10.5 cm x 23.0 cm x 28.2 cm
CDS-3020
- Spectral Range 350 nm to 830 nm
- Dynamic Range 1000000:1
- Thermal Control Yes
- Size 10.5 cm x 23.0 cm x 28.2 cm

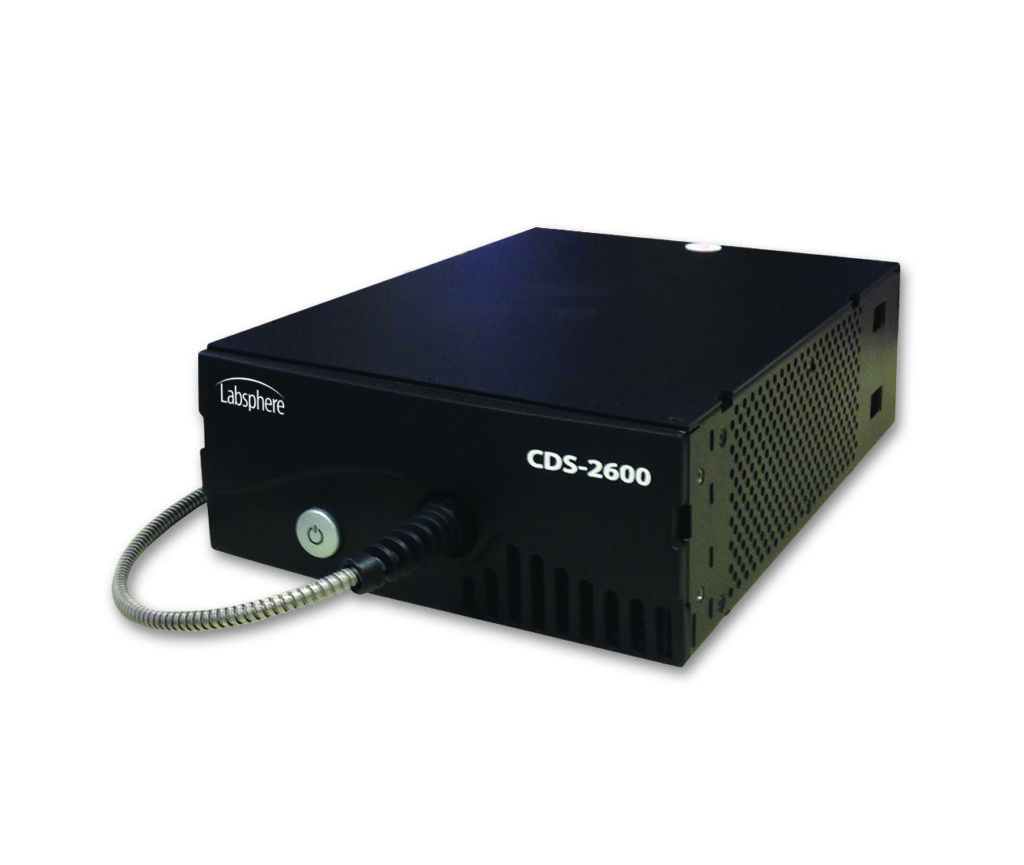

CDS-2600
- Spectral Range 325 nm to 1050 nm
- Dynamic Range >200000:1
- Thermal Control Yes
- Size 21.1 cm x 32.9 cm x 8.9 cm
CDS-2600-UV-VIS
- Spectral Range 200 nm to 960 nm
- Dynamic Range >200000:1
- Thermal Control Yes
- Size 21.1 cm x 32.9 cm x 8.9 cm

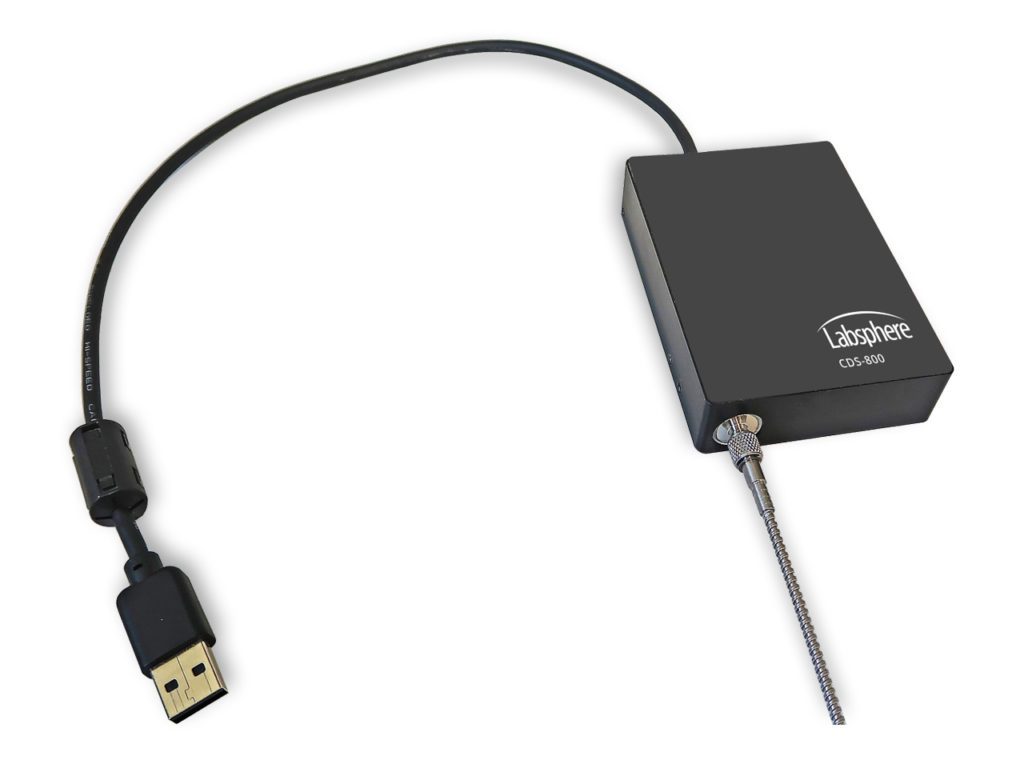

CDS-800
- Spectral Range 240 nm to 1100 nm
- Dynamic Range 3300:1
- Thermal Control No
- Size 95 mm x 68 mm x 70 mm
