Spectralon® Wavelength Calibration Standards
Complete spectral data.
Each Spectralon® Wavelength Calibration Standards is formulated by impregnating a Spectralon substrate with the oxide of a rare earth element which displays sharp absorption spikes at specific wavelengths. Complete absorption spectral data is supplied with each standard.
Applications:
| · Spectrophotometers | · Paint/ink manufacturing |
| · Spectrofluorometers | · Pharmaceuticals |
| · Textiles | · Biomedical |
Contact for Pricing
Lambertian behavior, durability, stability, and a calibration package that includes data for peak absorbance wavelengths relative to maximum absorbance, make Spectralon Wavelength Calibration Standards the ideal choice for spectral calibrations.
Durable
Durable, washable, and chemically inert without loss of surface texture, Spectralon Wavelength Calibration Standards retain uniformity throughout making them ideal for calibration of spectrophotometers, reflectometers, and other spectral instruments.
Consistent
Calibration data for peak absorbance wavelengths relative to maximum absorbance across the UV-VIS-NIR is provided with each calibrated standard. Calibration is traceable to National Institute of Standards and Technology (NIST).
Specifications

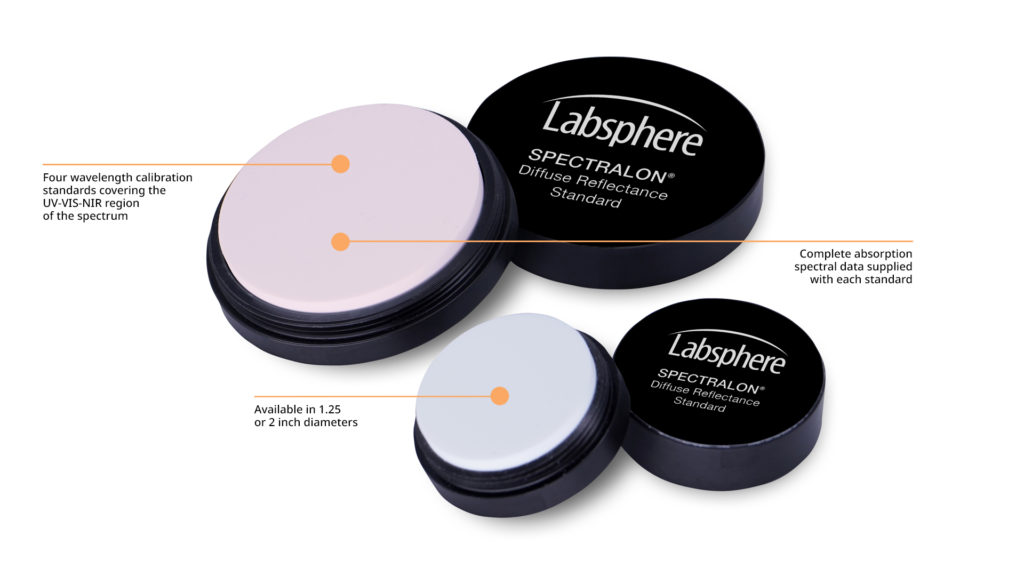

Spectralon® Wavelength Calibration Standards are available in either 1.25- or 2.00-inch diameters and are doped with one of the following: Holmium Oxide, Dysprosium Oxide, Erbium Oxide. A multi-component wavelength calibration standard is also available and combines the three rare earth oxides.
UV-VIS-NIR Standard
- Rare Earth Oxide(s) Holmium Oxide
- Calibrated Wavelengths Including 447.6 - 449.6 nm, 453.6 - 455.6 nm, 1134.1 - 1138.1 nm, 1198.6 - 1202.6 nm, 1932.5 - 1936.5 nm
NIR Standard
- Rare Earth Oxide(s) Dysprosium Oxide
- Calibrated Wavelengths Including 1087.8 - 1091.8 nm, 1230.5 - 1234.5 nm, 1299.3 - 1303.3 nm, 1682.0 - 1686.0 nm
VIS-NIR Standard
- Rare Earth Oxide(s) Erbium Oxide
- Calibrated Wavelengths Including 378.9 - 380.9 nm, 521.4 - 523.4 nm, 1009.5 - 1013.5 nm, 1470.0 - 1474.0 nm, 1476.0 - 1478.0 nm
UV-VIS-NIR Standard
- Rare Earth Oxide(s) Holmium, Dysprosium, & Erbium
- Calibrated Wavelengths Including 378.9 - 380.9 nm, 447.6 - 449.6 nm, 453.6 - 455.6 nm, 521.4 - 523.4 nm, 1009.5 - 1013.5 nm, 1134.1 - 1138.1 nm, 1198.6 - 1202.6 nm, 1230.5 - 1234.5 nm, 1299.3 - 1303.3 nm, 1470.0 - 1474.0 nm, 1476.0 - 1478.0 nm, 1682.0 - 1686.0 nm, 1932.5 - 1936.5 nm
