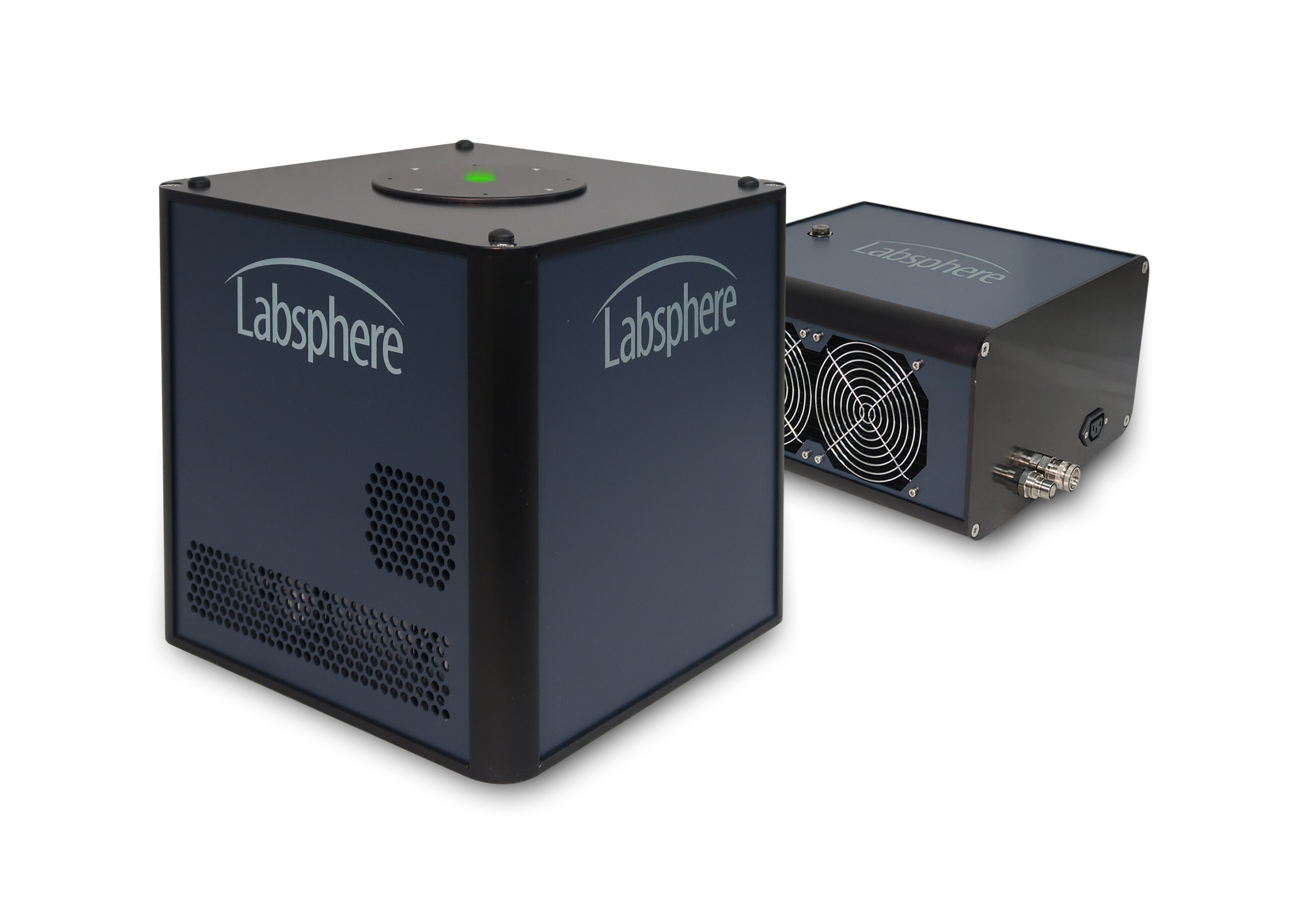

ReaLité Precision RGB Reference Sources
High brightness RGB uniform source provides stable and repeatable references with peak wavelength and system configurations available to match testing needs – from the benchtop to production!
• Bright – 2,000,000 nits
• Uniform – Best-in-class @ 96%+
• Stable – Best-in-class for wavelength (± 5 nm) and luminance (± 2%)
• Fast – 1 second settling time
Contact for Pricing
Labsphere is a recognized leader in traceable reference sources. Our ReaLité (pr. ray-ah-lee-tay) platform is engineered for spectral matching of displays for AR waveguides and imaging colorimeter characterization and correction.

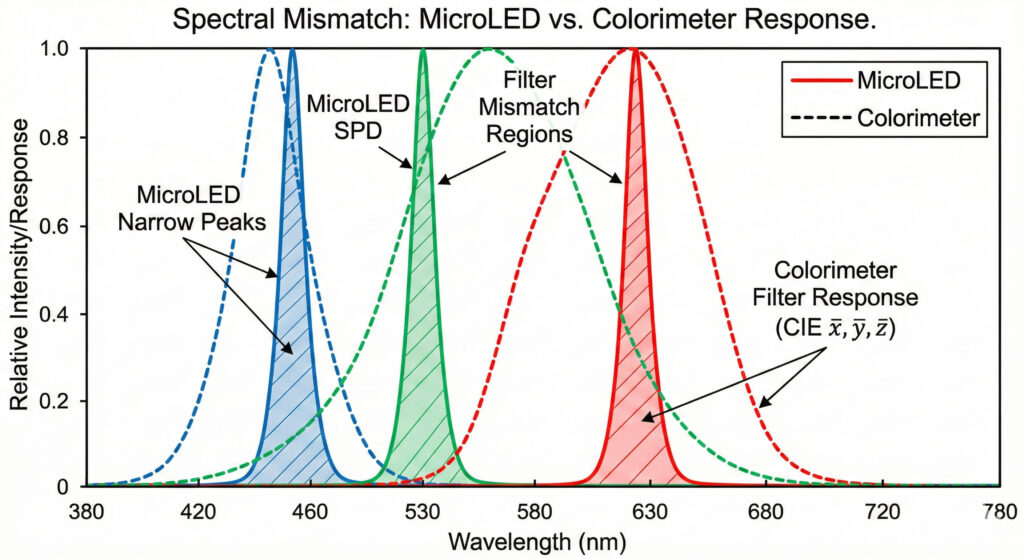

Reducing Measurement Error with Precision Peak Matching and Spectral Stability
Precise spectral matching between ReaLité and the AR light engine mitigates the slope errors inherent in standard colorimeter filters. By combining best-fit alignment with exceptional wavelength stability, ReaLité ensures that spectral mismatch correction methods remain valid, delivering accurate performance data for narrowband laser and microLED devices.
The ReaLité platform is engineered to operate seamlessly in the lab as well as in an ATS (Automated Test System). Commissioning software provides an intuitive setup, while a universal command interface allows scripting of specific set points for testing sequences that can be programmed for your unique applications, tests, and characterization requirements.

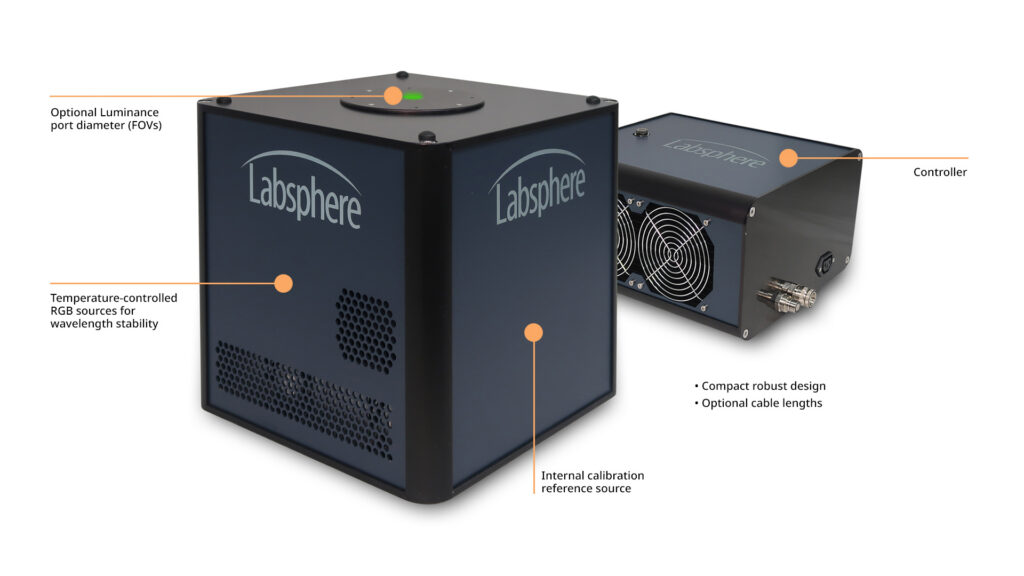

With Labsphere’s proprietary diffuse reflectance material, Spectralon®, screened and binned LED sources, and thermally-controlled light engines, long-term repeatability and reproducibility are ensured. While our integrated spectral radiance monitoring provides system performance and health feedback, an internal reference standard enables system recharacterization and performance optimization over the life of the product.
Specifications
- KEY PARAMETERS
- Luminance Range 50 - 2,000,000 nits at 6500K CCT
- Wavelength Shift ± 5 nm (over Luminance Range)
- Clear Field of View (FoV) at Port 45 mm x 65 mm x 75° full angle (H x W x Diagonal)
- Luminance Port Diameter Options 16 mm, 20 mm, and 25.4 mm
- Spatial Luminance Uniformity Greater than 97% uniformity (evaluated over 90% clear aperture)
- Angular Luminance Uniformity 96% (over ± 30°, evaluated at center)
- Luminance Stability - Short Term ± 1.0% P-P, 1 min.
- Luminance Stability - Long Term ± 2.0% P-P, 1 hr.
- SPECTRAL PERFORMANCE
- Wavelength Repeatability ± 2 nm
- Wavelength Reproducibility ± 5 nm (system to system)
- Peak Wavelength Stability < 2 nm over 1 hour
- SPECTRAL OPTIONS
- Red Peak Wavelength Options 625 nm nominal (620 - 630 nm) or 635 nm nominal (630 - 640 nm)
- Green Peak Wavelength Option 520 nm nominal (515 - 525 nm)
- Blue Peak Wavelength Options 455 nm nominal (450 - 460 nm) or 465 nm nominal (460 - 470 nm)
