Spectra-CT Color Tunable Test and Calibration Reference Sources
Ideal for testing visible imagers used to test displays.
· CCT Range of 2800K to 7500K
· High Uniformity
· High Dynamic Range Luminance
· Variable Light Output
· High Dynamic Range Illuminance
*Select Product Option First
Precise LED Control

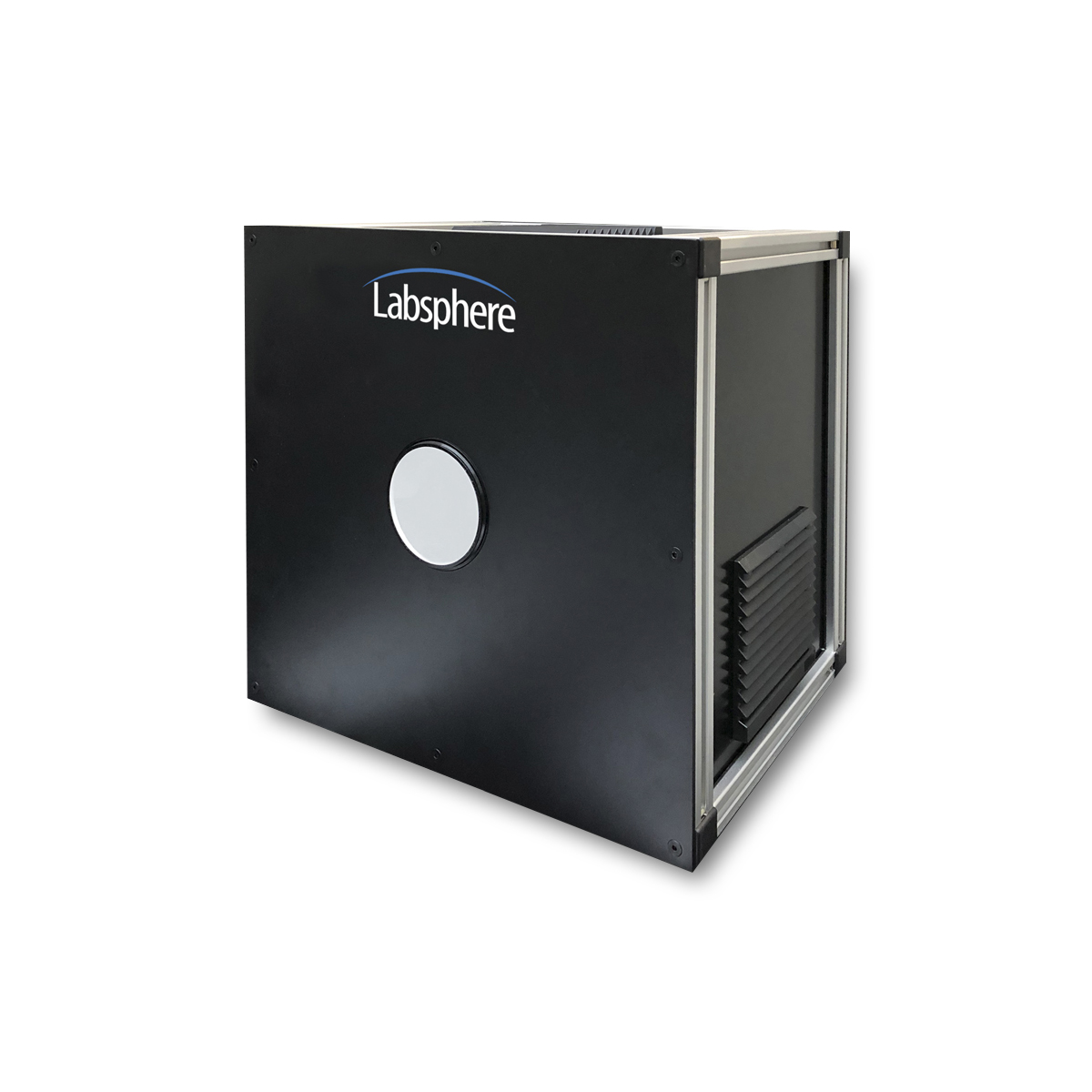

Spectra-CT CT-1000 products are integrating sphere based uniform light sources utilizing warm white and cool white LEDs controlled by a high-precision programmable DC power supply. With the active cooling system inside, the output is kept stable over a broad range of luminance levels up to 50,000 cd/m2.

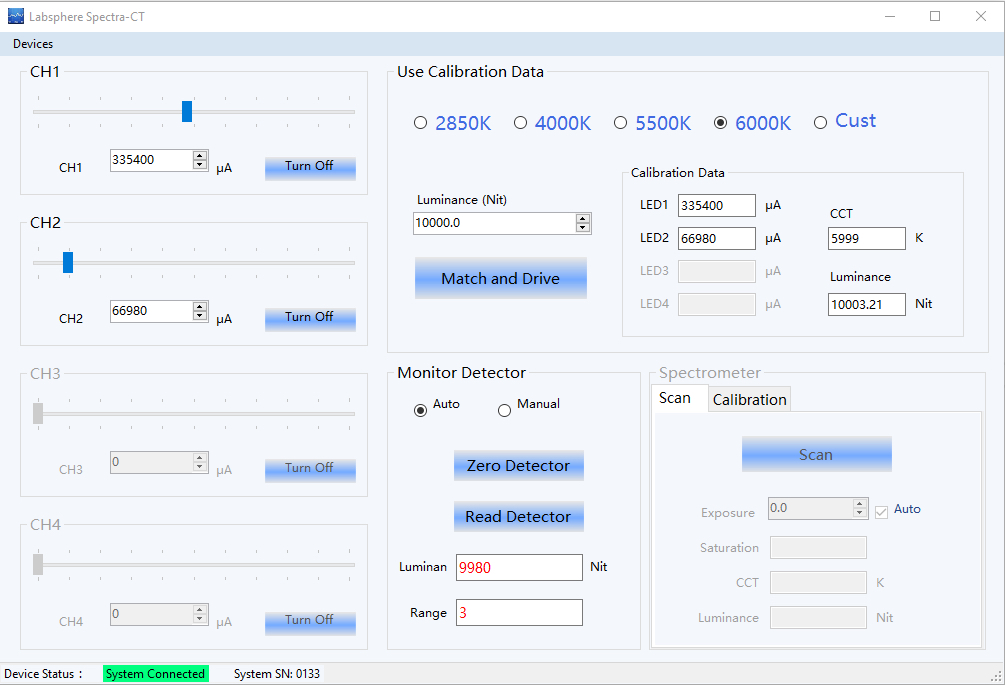

Simple and convenient software is provided with the system for CCT selection, and luminance adjustment together with related system information. For advanced applications such as multi-system integration, software API is available.
