Spectra-QT Quantum Tunable Irradiance/Radiance Calibration Source
Ideal for testing spectral response of silicon based optical sensors.
For the image sensor industry, accurate knowledge of a sensor’s electro-optical quantum efficiency is essential to product performance. A well characterized sensor allows device integrators to specify and tailor the input optics and spectral filtering and apply performance enhancing corrections through the end product.
Characterization of:
| · Quantum Efficiency |
| · Spectral Irradiance Responsivity |
| · Spectral Radiance Responsivity |
| · Linearity |
Contact for Pricing
Always Know the Light Levels on your Sensors

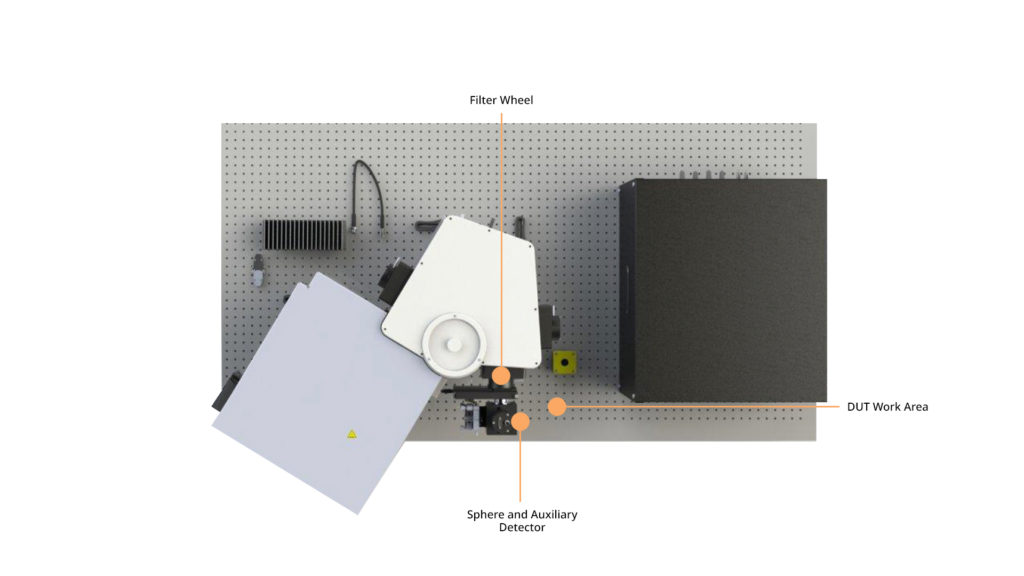

The integrated sphere detector is calibrated to monitor irradiance or radiance at the constituent wavelengths. Also with selectable apertures for defined f/#s you’ll always know the irradiance levels on your sensors for a given field of view.
Complete Control

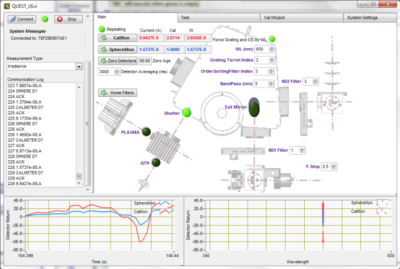

The QT-1100 user interface allows for complete control of light sources, bandwidth, gratings, ND Filter wheel, test wavelengths, and irradiance and radiance ports. Plus the LS-QUEST LabVIEW API gives you complete control for synchronizing testing with your sensor response.
Specifications
Irradiance (Sensor Calibration)
- Spectral Range 350 nm to 1100 nm
- f/# Apertures Qty 5
- Port Geometry Irradiance
- Max Irradiance at 400 nm 6 uW/cm2
- Max Irradiance at 600 nm 15 uW/cm2
- Max Irradiance at 800 nm 13 uW/cm2
- Max Irradiance at 1000 nm 20 uW/cm2
Radiance (Camera Calibration)
- Spectral Range 350 nm to 1100 nm
- Port Geometry Radiance
- Max Irradiance at 400 nm 17 uW/cm2-sr
- Max Irradiance at 600 nm 40 uW/cm2-sr
- Max Irradiance at 800 nm 30 uW/cm2-sr
- Max Irradiance at 1000 nm 50 uW/cm2-sr
