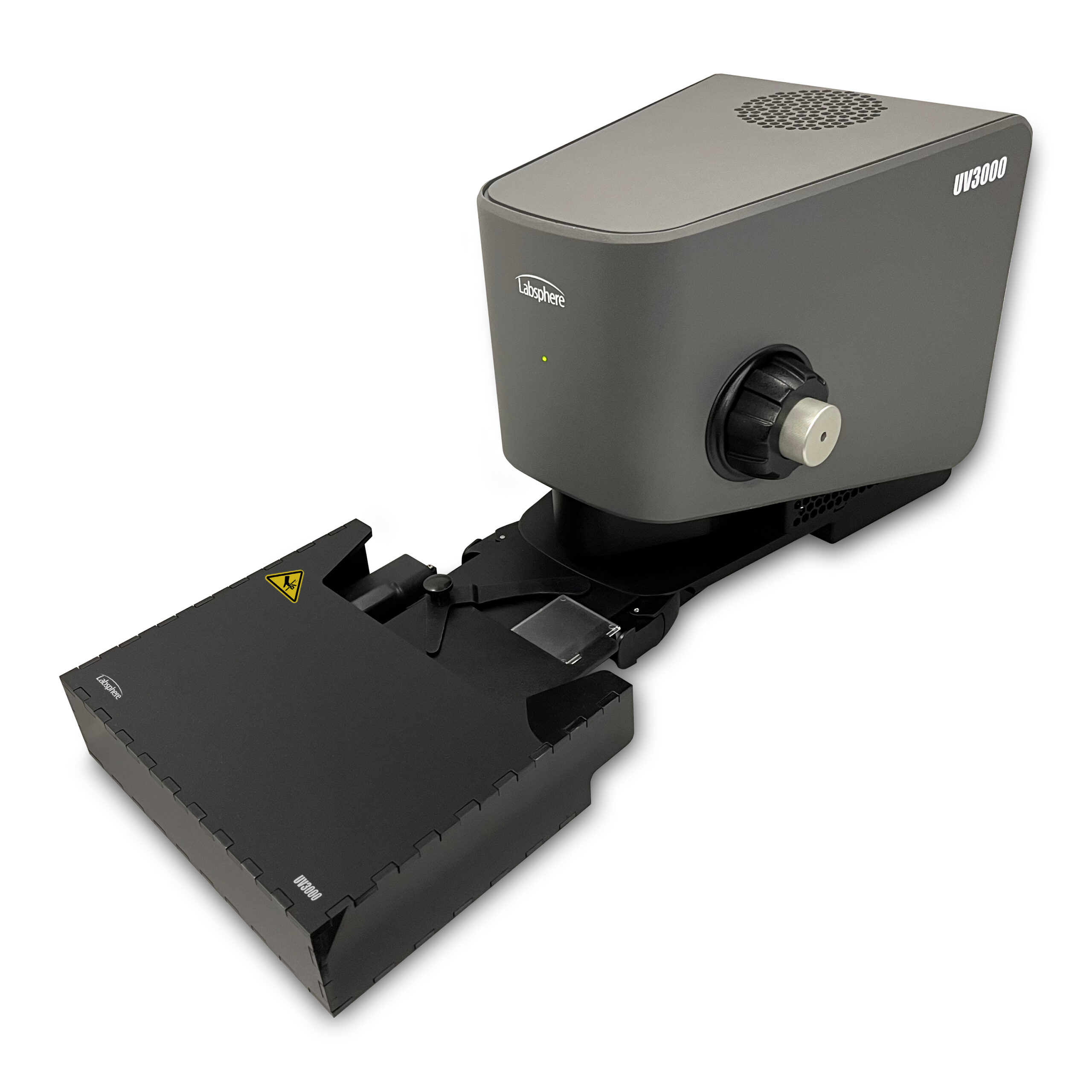

UV3000S Automated Sample Stage
The Automated Sample Stage for the UV3000S is designed for high-throughput testing, delivering faster workflows, improved precision, and highly repeatable results. Using virtual templates in the UV3000S software, the stage automatically moves to predefined test locations and executes scans – eliminating operator variability and ensuring consistent, confidence-inspiring measurements.
Powered through the UV3000S five-pin interface on the base instrument and controlled via dedicated USB-C interface, it integrates seamlessly with the instrument and attaches quickly using two over-center draw latches.
Features
-
Motorized Operation: Designed for repetitive, high-volume use, reducing manual intervention while increasing throughput.
-
Enhanced Precision: Provides accurate, repeatable sample positioning, ensuring consistent test results from one sample plate to the next.
-
Easy Attachment: Attaches to the front of the instrument with two over-center draw latches, similar to the manual stage.
-

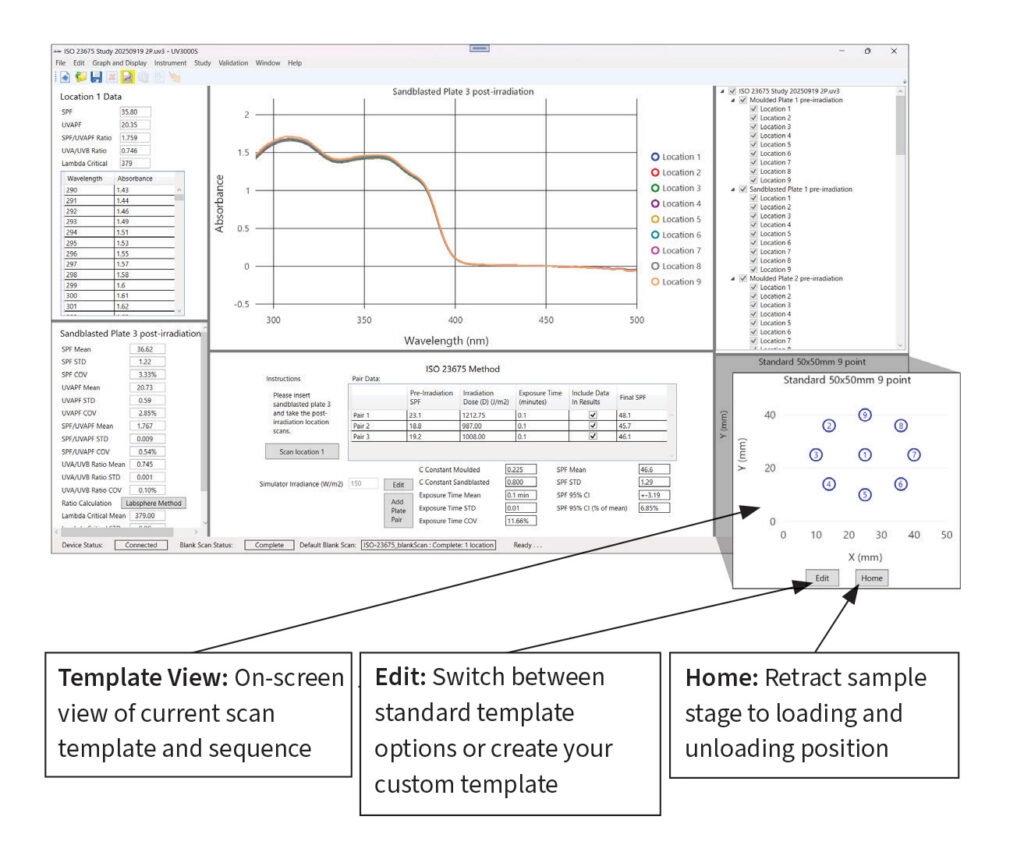

Virtual Test Templates: Ability to select standard templates within the UV3000S software or customization for user defined studies.
-
Automate Workflows: The software instructs the stage to move PMMA plate to specific test locations and execute scans according to test method requirements. A nine-point PMMA plate mapping typically takes less than 60 seconds.
Contact for Pricing
Specifications
- Position Repeatability ±0.02 mm (Based on ability to return to the identical point on 50 mm PMMA sample plate)
- ISO 23675 Plate Run Time ≤ 60 seconds (9-points on a PMMA sample plate)
- ISO 24443 Plate Run Time ≤ 40 seconds (5-points on a PMMA sample plate)
- Positioning Accuracy ±0.35 mm (ISO‑style 9‑point and 12-point evaluation over a 50 mm PMMA sample plate, UV3000 spot size)
