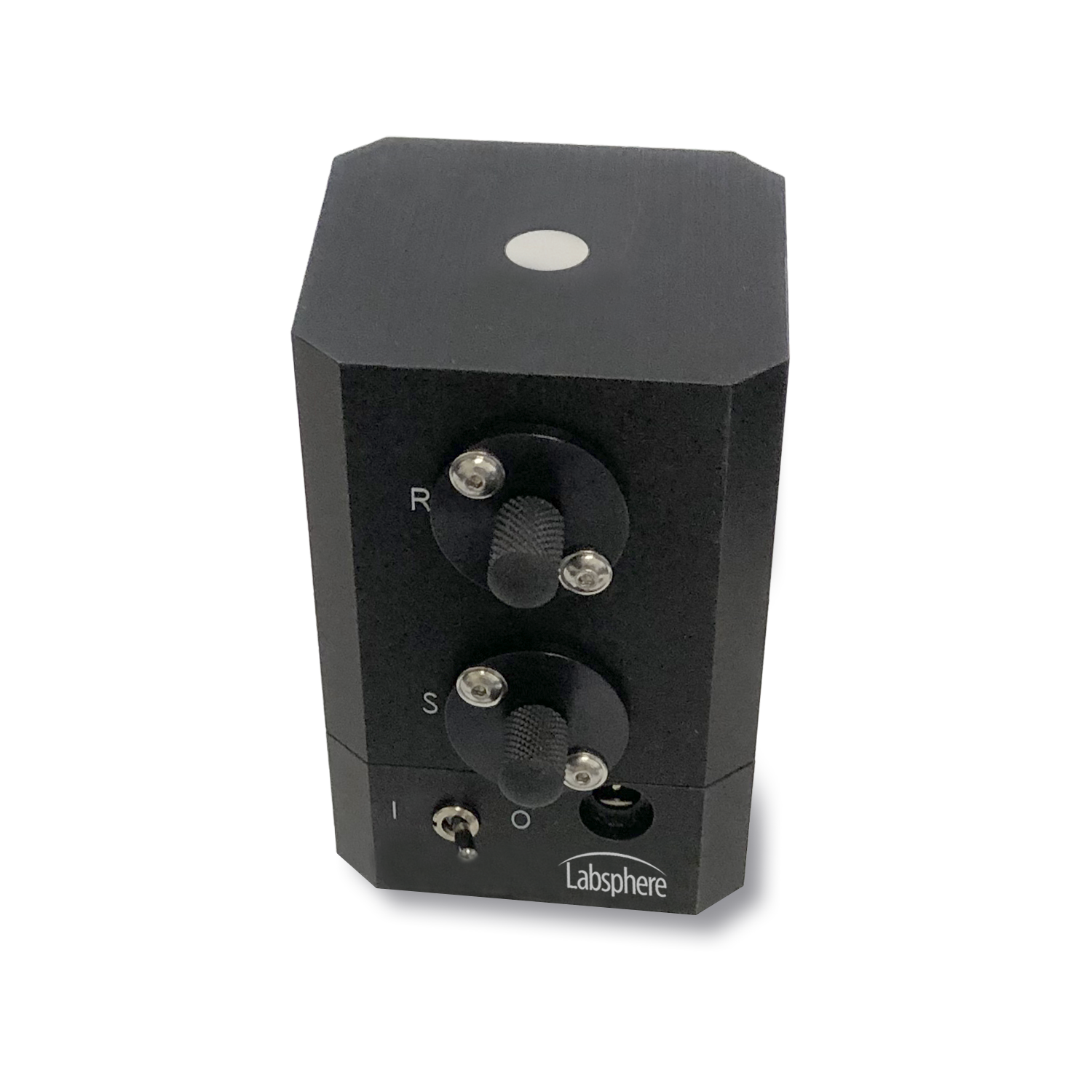

RSA-REF-50-DB Dual Beam Reflectance Spectroscopy Accessory

The RSA-REF-50-DB Integrating Sphere provides even surface illumination for reflectance measurements of surfaces such as the color of flat samples.

The RSA-REF-50-DB has two primary functions:

  1. To provide diffuse illumination for reflectance
    measurements, such as determining the color of flat
    surfaces; and
  2. To collect reflected light through an optical fiber port
    for spectral reflectance characterization.

The RSA-REF-50-DB is small and compact yet durable enough for use outside the laboratory. All instrument electronics – including the lamp, which can be replaced by simply removing two screws mounted on the bottom section of the unit.
