HELIOS® Plus-LL Low Level Systems
The ideal solution for night vision systems and security cameras.
Features:
· Broadband 2856K black body like spectrums
· Extreme dynamic range down to SNR limited night vision light levels
· Automation and monitoring for use in dark-lab conditions

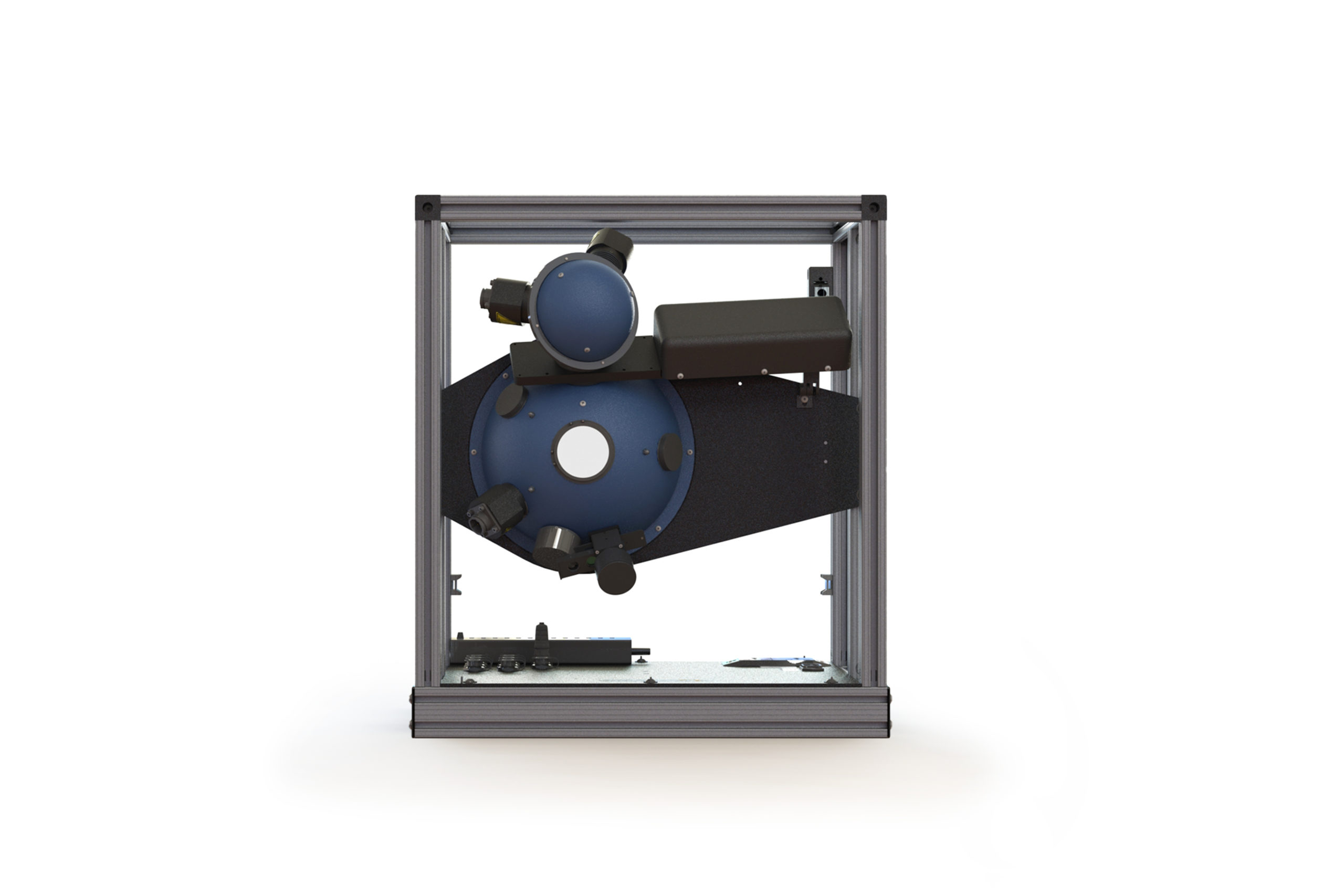

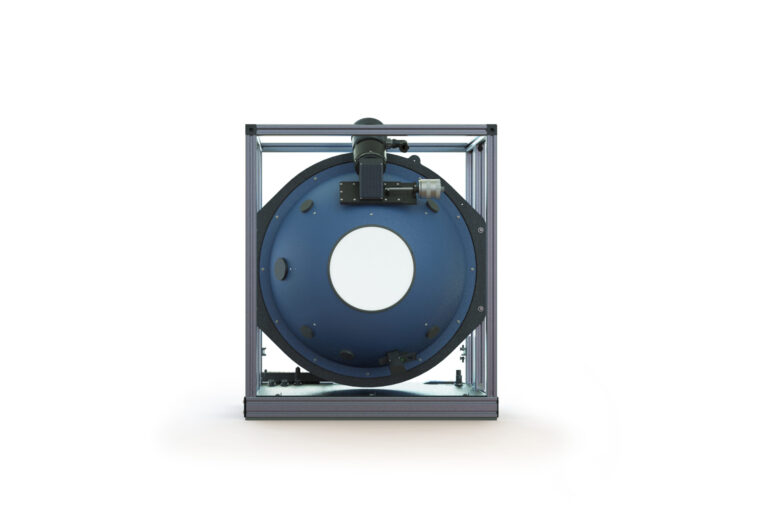

The HELIOSPlus-LL, L Family systems are classic QTH-based calibration sources designed for low level and MIL Spec night vision sensor testing. Two detectors and automated attenuators give you the ability to dial in an exact light level at the challenging low limits of your sensors.
Sphere Dia | Port Dia | Max Luminance, cd/m2 | Illuminance at Port, lux | CCT Range | Variable Attenuator | # Steps | |
USLR-L20F-NBNL-P | 20 | 8 | 1,600 | 5,000 | 2856K +/-50K | Advanced, VAA | 8.80E+06 |
USLR-L12F-NBNL-P | 12 | 4 | 4,700 | 14,800 | 2856K +/-50K | Advanced, VAA | 8.00E+06 |
USLR-L12L-NBNL-P | 12 | 4 | 6,400 | 20,000 | 2856K +/-50K | Advanced, VAA | 8.00E+06 |
USLR-L08F-NBNL-P | 8 | 2 | 6,500 | 20,300 | 2856K +/-50K | Advanced, VAA | 6.00E+06 |
USLR-L08L-NBNL-P | 8 | 2 | 9,500 | 30,000 | 2856K +/-50K | Advanced, VAA | 6.00E+06 |
NOTE: Depending on the application and the desired uncertainty levels, custom calibrations may be required to characterize the system under different operating conditions. Our application engineers would be happy to discuss this with you and help define the best system and calibrations to meet your requirements.
![](https://www.labsphere.com/wp-content/uploads/2021/08/Detector-e1633542375246.jpg)
Sensitivity Across the Spectral Range
Accurately monitor the dynamic range of your low light cameras with the HELIOSPlus L Family dual detector set up. The SD-S1 and SD-L1 silicon detectors are large active area detectors featuring extremely stable output over a wide range of temperatures and light levels. The L1 offers extremely low light level capability.
![heliosense product screen](https://www.labsphere.com/wp-content/uploads/2021/08/HELIOSense-Screen.jpg)
Automate Your Testing Routines
Automate your low light testing routines with responsive Hunt & Seek feedback loops using attenuators, detectors, and spectrometers, or impliment Scripting functions for simple programs inside and outside the HELIOSense GUI. HELIOSense Software is the primary interface for HELIOSPlus components and systems. It is a flexible architecture where any hardware built into the Labsphere API (LSAPI) can be recognized and used in HELIOSPlus systems.
![](https://www.labsphere.com/wp-content/uploads/2021/07/HELIOS LFamily KeyPoints-1024x576.jpg)
Specifications
Whether your work is scientific, military, intensified sensor testing or simulating low-signature level sources, there’s an L Family system for your lab.
USLR-L20F-NBNL-P
- Output Port Size 8 in., 0.2 m
- Internal Diameter 20 in., 0.5 m
- Expected Luminance 1,600 cd/m2
- Dynamic Range/Bits/dB 4.00E+09/31/19
- Angular Uniform FOV (Full Angle) +/-2.0% - 35°
- Coating/Material Spectraflect
USLR-L12F-NBNL-P
- Output Port Size 4 in., 0.1 m
- Internal Diameter 12 in., 0.3 m
- Expected Luminance 4,700 cd/m2
- Dynamic Range/Bits/dB 1.00E+10/32/199
- Angular Uniform FOV (Full Angle) +/-2.0% - 35°
- Coating/Material Spectraflect
USLR-L12L-NBNL-P
- Output Port Size 4 in., 0.1 m
- Internal Diameter 11.5 in., 0.29 m
- Expected Luminance 6,400 cd/m2
- Dynamic Range/Bits/dB 1.00E+10/32/199
- Angular Uniform FOV (Full Angle) +/-2.0% - 35°
- Coating/Material Spectralon
USLR-L08F-NBNL-P
- Output Port Size 2 in., 5cm
- Internal Diameter 8 in., 0.2 m
- Expected Luminance 6,500 cd/m2
- Dynamic Range/Bits/dB 6.25E+09/31/196
- Angular Uniform FOV (Full Angle) +/-2.0% - 35°
- Coating/Material Spectraflect
USLR-L08L-NBNL-P
- Output Port Size 2 in., 5cm
- Internal Diameter 7.5 in., 0.19 m
- Expected Luminance 9,500 cd/m2
- Dynamic Range/Bits/dB 7.50E+09/32/197
- Angular Uniform FOV (Full Angle) +/-2.0% - 35°
- Coating/Material Spectralon
