Integrating Sphere Spectroradiometers: Lamp and Fixture Test and Characterization
Flexible, modular light measurement solutions with centralized data management.
From high bays to headlights and everything in between, we’ve designed an integrating sphere spectroradiometer for your application. Labsphere’s illumiaPlus2 integrating sphere spectroradiometers offer flexibility to meet your most demanding light measurement requirements.
Quantify:
| · Spectral Radiant Flux | · Luminous Flux |
| · Photosynthetic Flux | · PPE |
| · Luminous Efficacy | · Flicker |
| · Photon Flux | · Peak Wavelength |
| · CRI | · CIE, Colorimetry |
| · FWHM | · TM-30 |
and more…
Contact for Pricing

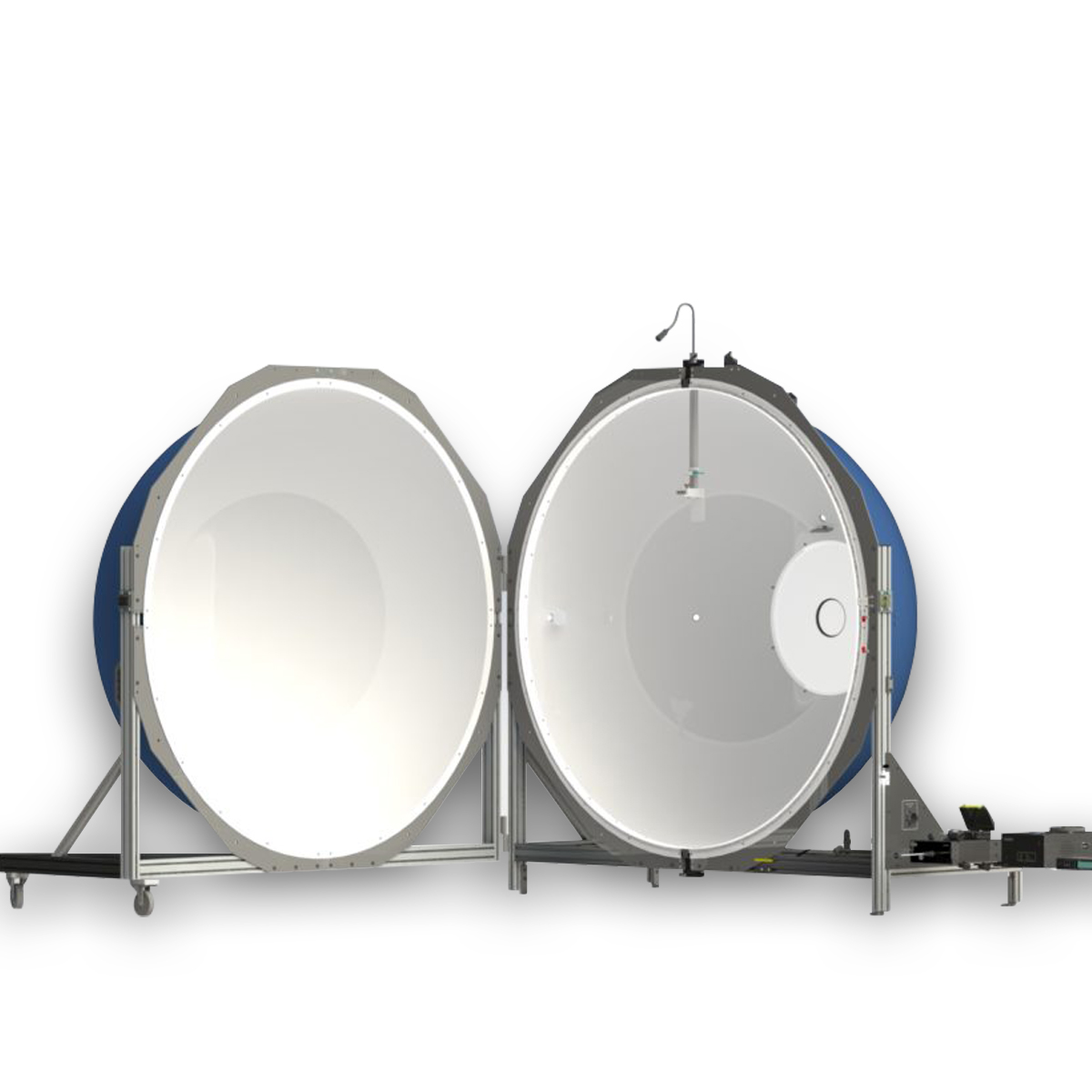

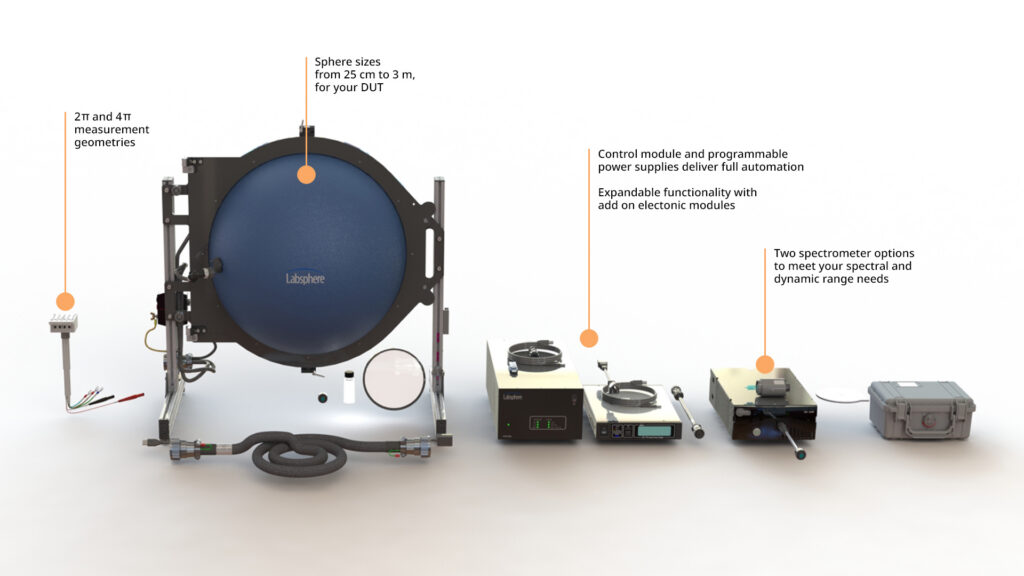

illumiaPlus2 integrating sphere spectroradiometers are available in sizes from 25 cm to 3 m in both 2π and 4π geometries. Choose from three spectrometer options and application-specific electronic modules that help you maximize efficiency and productivity while maintaining high absolute accuracy and repeatability, no matter the application.
Improve Productivity

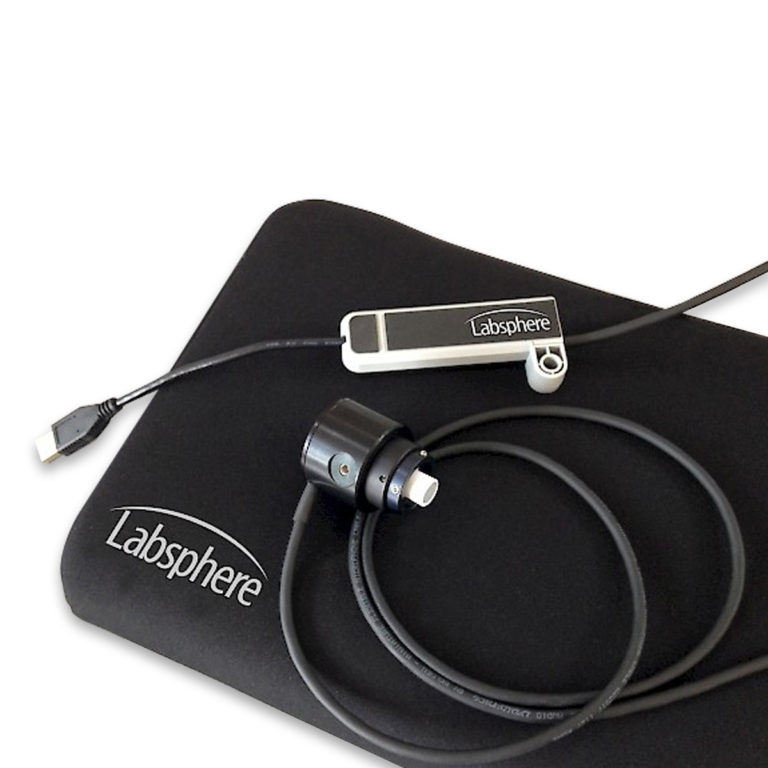

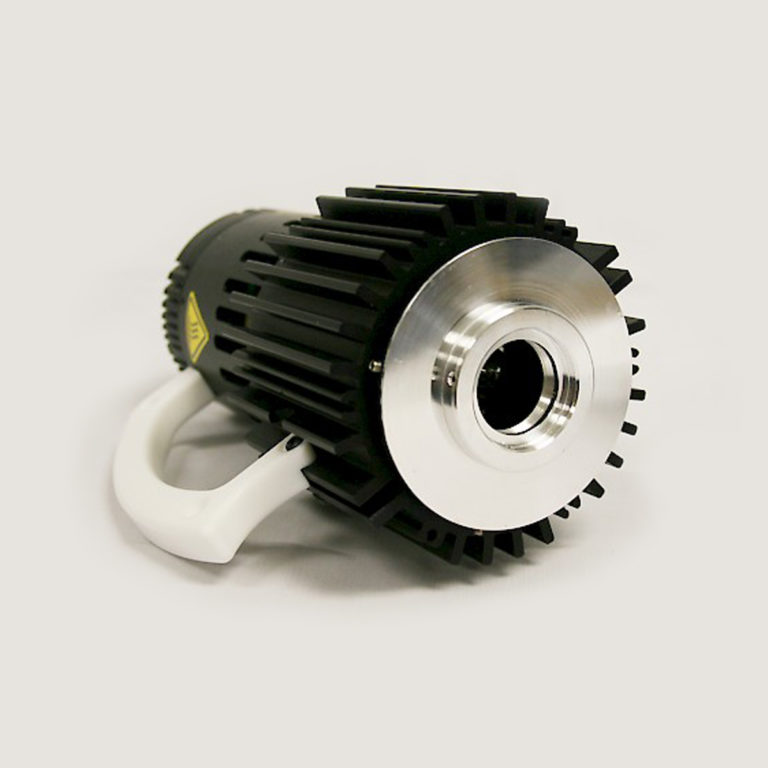

Advanced integrating sphere design allowing lamp “hot swap” to achieve greater efficiency and laboratory throughput. Add-on electronic modules increase functionality and simplify compliance with IES LM-79-19, IES LM-78, and equivalent measurement guidelines.
Integral® Software Drives it All

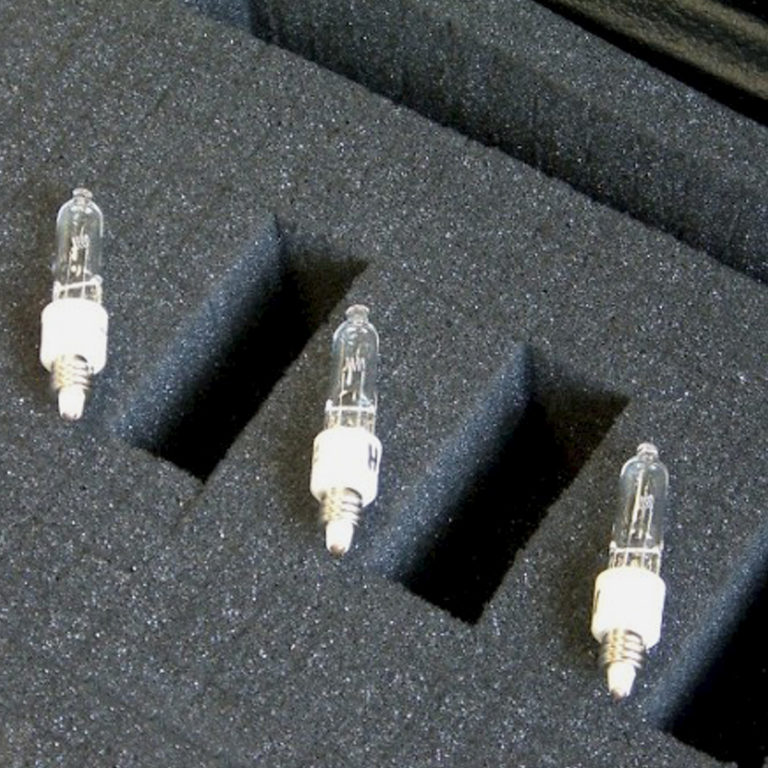

Operate your system from any device at any location and in multiple languages. Automate calibration routines with built in LM-45 stabilization. Meets LM-79-19 and LM-78 measurement methods and industry standard color calculations.
Specifications
CDS 2600 Based Systems
- Typical Lumen Range 0.001 - 3400 lumens (depends on spectral distribution)
- Wavelength Range 350 nm – 1050 nm
- 4π System Order Number AA-40074-025
- Max 4π DUT Size ~16.7 cm linear lamps, ~2.5 cm small lamps (ref. LM-78)
- 2π System Order Number AA-40072-025
- Max 2π DUT Size 6 cm diameter

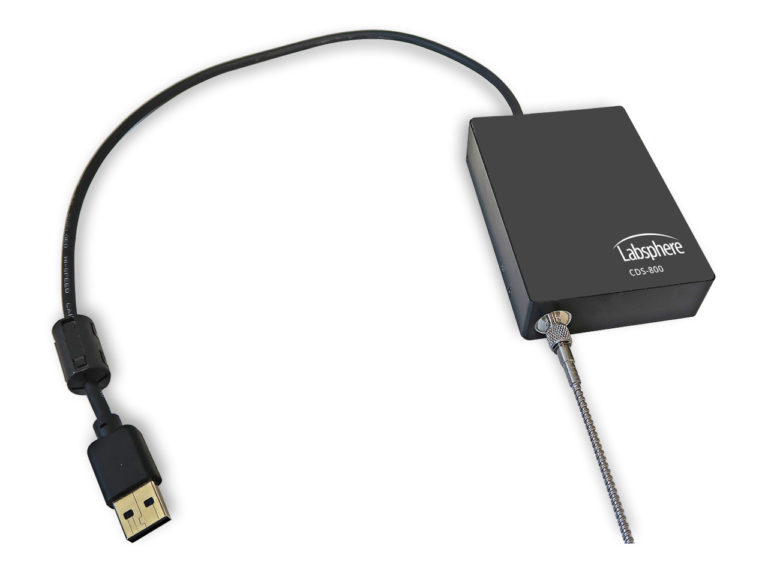

CDS 800 Based Systems
- Typical Lumen Range 0.008 - 1880 lumens (depends on spectral distribution)
- Wavelength Range Value 2 350 nm – 1050 nm
- 4π System Order Number AA-40024-025
- Max 4π DUT Size ~16.7 cm linear lamps, ~2.5 cm small lamps (ref. LM-78)
- 2π System Order Number AA-40022-025
- Max 2π DUT Size 6 cm diameter
CDS 2600 Based Systems
- Typical Lumen Range 0.002 - 13800 lumens (depends on spectral distribution)
- Wavelength Range 350 nm – 1050 nm
- 4π System Order Number AA-40074-050
- Max 4π DUT Size ~33.3 cm linear lamps, ~5.0 cm small lamps (ref. LM-78)
- 2π System Order Number AA-40072-050
- Max 2π DUT Size ~10 cm diameter (based on LM-79)
CDS 800 Based Systems
- Typical Lumen Range 0.008 - 1880 lumens (depends on spectral distribution)
- Wavelength Range 350 nm – 1050 nm
- 4π System Order Number AA-40024-050
- Max 4π DUT Size ~33.3 cm linear lamps, ~5.0 cm small lamps (ref. LM-78)
- 2π System Order Number AA-40022-050
- Max 2π DUT Size ~10 cm diameter (based on LM-79)
CDS 2600 Based Systems
- Typical Lumen Range 0.01 - 30000 lumens (depends on spectral distribution)
- Wavelength Range 350 nm – 1050 nm
- 4π System Order Number AA-40074-100
- Max 4π DUT Size ~66.7 cm linear lamps, ~10 cm small lamps (ref. LM-78)
- 2π System Order Number AA-40072-100
- Max 2π DUT Size ~20 cm diameter (ref. LM-79)
CDS 800 Based Systems
- Typical Lumen Range 0.12 - 16300 lumens (depending on source spectral distribution)
- Wavelength Range 350 nm – 1050 nm
- 4π System Order Number AA-40024-100
- Max 4π DUT Size ~66.7 cm linear lamps, ~10 cm small lamps (ref. LM-78)
- 2π System Order Number AA-40022-100
- Max 2π DUT Size ~20 cm diameter (ref. LM-79)
CDS 2600 Based Systems
- Typical Lumen Range 0.02 - 114000 lumens (depending on source spectral distribution)
- Wavelength Range 350 nm – 1050 nm
- 4π System Order Number AA-40074-165
- Max 4π DUT Size ~110 cm linear lamps, ~16.5 cm dia. small lamps (ref. LM-78)
- 2π System Order Number AA-40072-165
- Max 2π DUT Size ~33 cm diameter (ref. LM-79)
CDS 800 Based Systems
- Typical Lumen Range 0.35 - 37000 lumens (depending on source spectral distribution)
- Wavelength Range 350 nm – 1050 nm
- 4π System Order Number AA-40024-165
- Max 4π DUT Size ~110 cm linear lamps, ~16.5 cm dia. small lamps (ref. LM-78)
- 2π System Order Number AA-40022-165
- Max 2π DUT Size ~33 cm diameter (ref. LM-79)

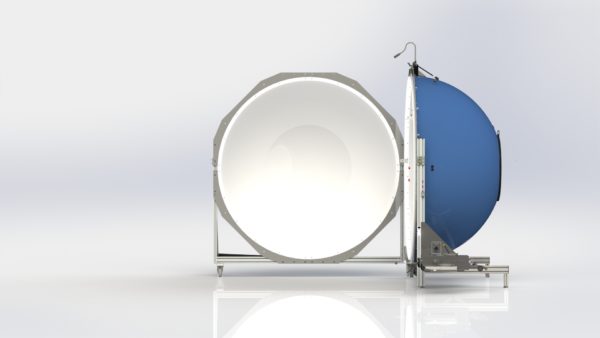

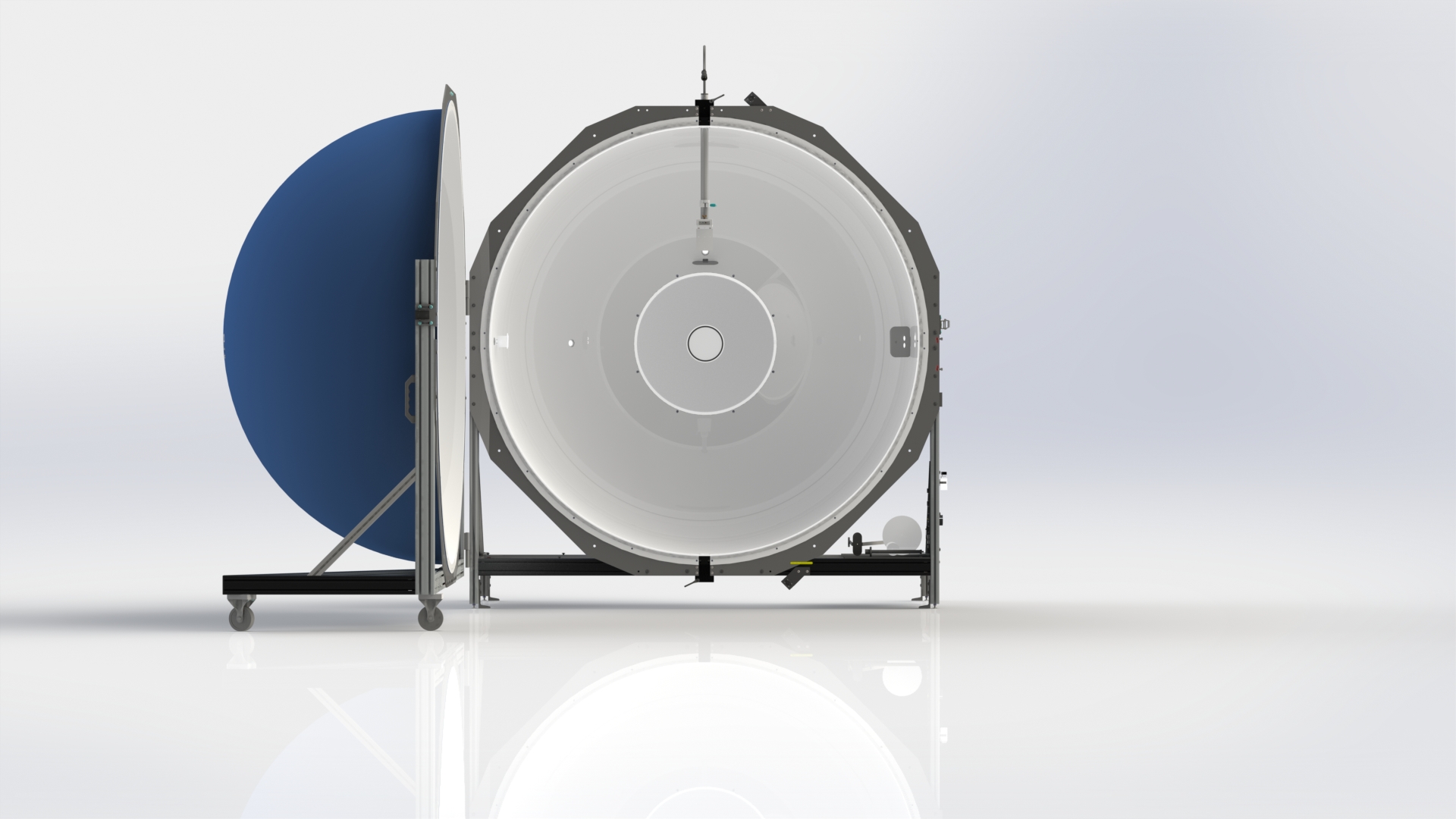

CDS 2600 Based Systems
- Typical Lumen Range 0.04 - 160000 lumens (depending on source spectral distribution)
- Wavelength Range 350 nm – 1050 nm
- 4π System Order Number AA-40074-195
- Max 4π DUT Size ~130 cm linear lamps, ~19.5 cm dia. small lamps (ref. LM-78)
- 2π System Order Number AA-40072-195
- Max 2π DUT Size ~39 cm diameter (ref. LM-79)
CDS 800 Based Systems
- Typical Lumen Range 0.5 - 57000 lumens (depending on source spectral distribution)
- Wavelength Range 350 nm – 1050 nm
- 4π System Order Number AA-40024-195
- Max 4π DUT Size ~130 cm linear lamps, ~19.5 cm dia. small lamps (ref. LM-78)
- 2π System Order Number AA-40022-195
- Max 2π DUT Size ~39 cm diameter (ref. LM-79)
CDS 2600 Based Systems
- Typical Lumen Range 0.09 - 360000 lumens (depending on source spectral distribution)
- Wavelength Range 350 nm – 1050 nm
- 4π System Order Number AA-40074-300
- Max 4π DUT Size ~200 cm linear lamps, ~30 cm dia. small lamps (ref. LM-78)
CDS 800 Based Systems
- Typical Lumen Range 1.13 - 128250 lumens (depending on source spectral distribution)
- Wavelength Range 350 nm – 1050 nm
- 4π System Order Number AA-40024-300
- Max 4π DUT Size ~200 cm linear lamps, ~30 cm dia. small lamps (ref. LM-78)
