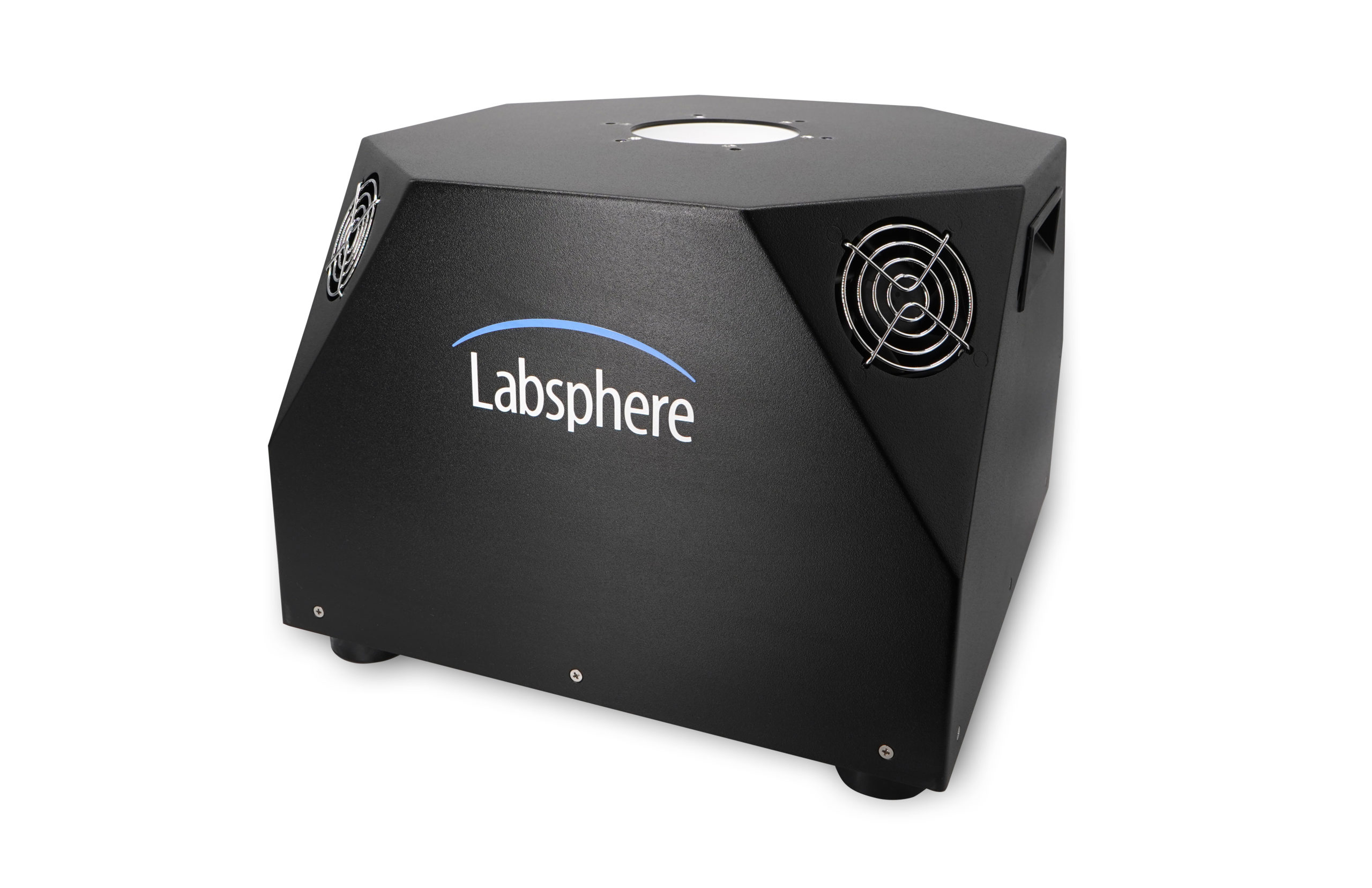

Spectra-FT Fine Tunable Test and Calibration Reference Sources
Spectra-FT solutions fine tunable LED light sources are ideal for testing cameras and optical sensors response to multiple illuminants, to spot illumination. Spectra-FT solutions cover the spectral range of fine tunable spectrums from 300nm to 1600nm.
Source of:
· Unlimited Spectral Radiance
· Solid State Spectral Tunability
· High Luminance Uniformity
· Variable Light Output
Starting Price
$34,431.00
Contact for Pricing
*Select Product Option First
A Range of Solutions

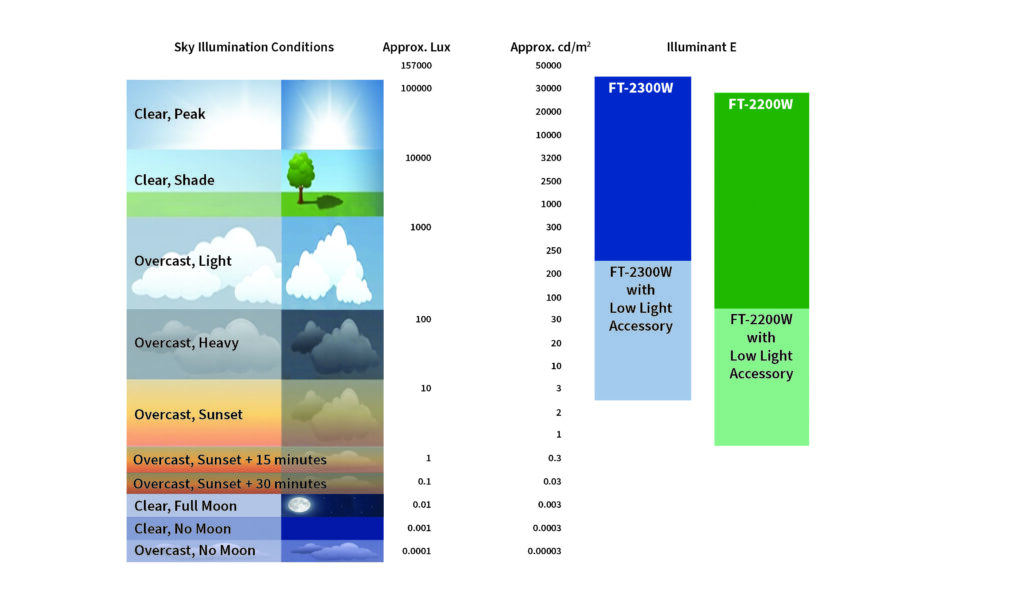

Spectra-FT is a family of fine tunable uniform sources for test, characterization, and illumination of imaging and non-imaging optical sensors. Choose from VIS-NIR spectral sources with luminance ranges from 200 cd/m2 to greater than 25,000 cd/m2. For InGaAs sensors and night vision we have our SWIR source.

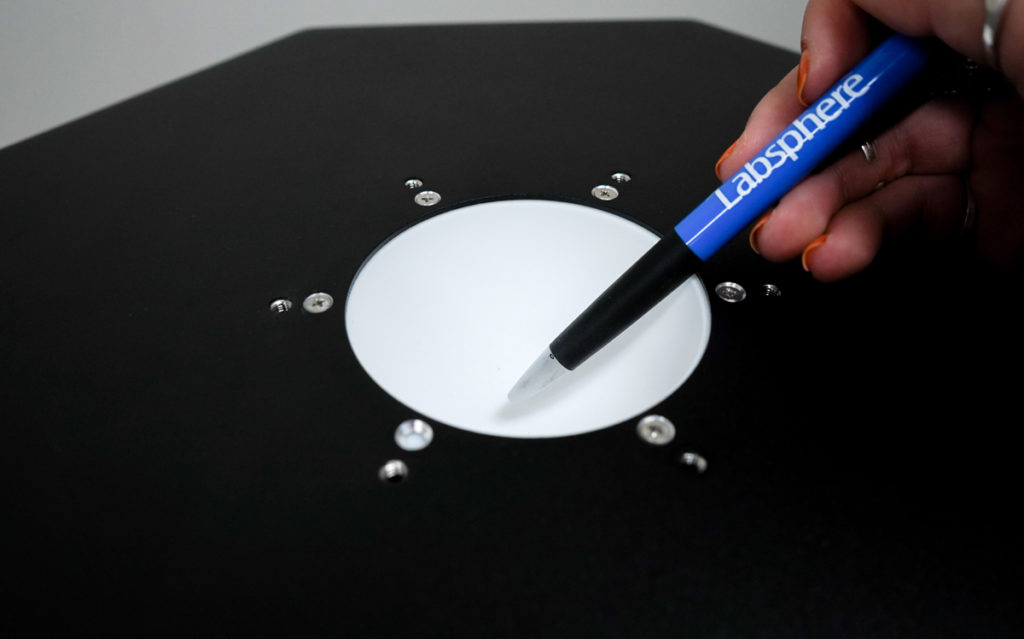

Integrated Diffusers
Uniformity is key to testing sensors arrays, and these fine tunable sources have integrated diffusers that allow for high uniformity for testing cameras with field of views.

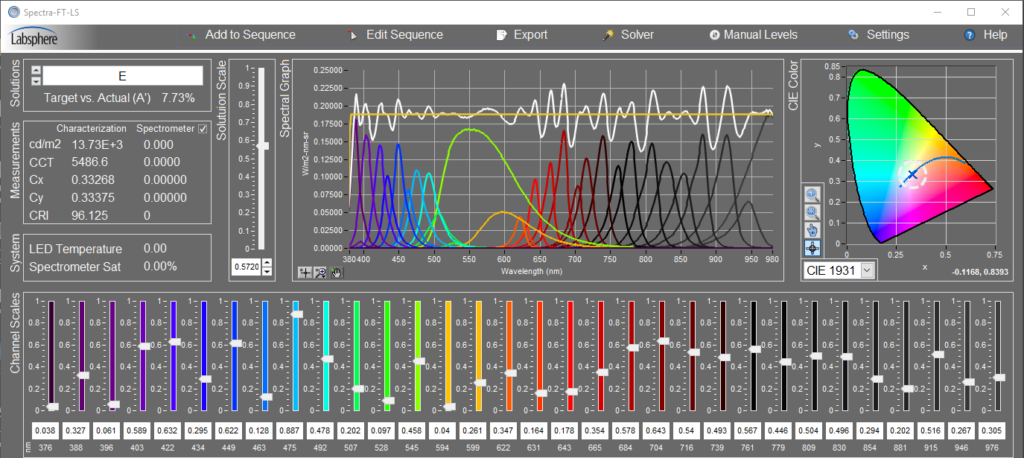

Real-time Spectral Performance Tracking
An integrating internal spectroradiometer offers real-time spectral performance tracking over the dynamic range of the systems. Recalibration and recharacterization features ensure long life performance and minimal downtime making Spectra-FT sources ideal for production applications.
Specifications

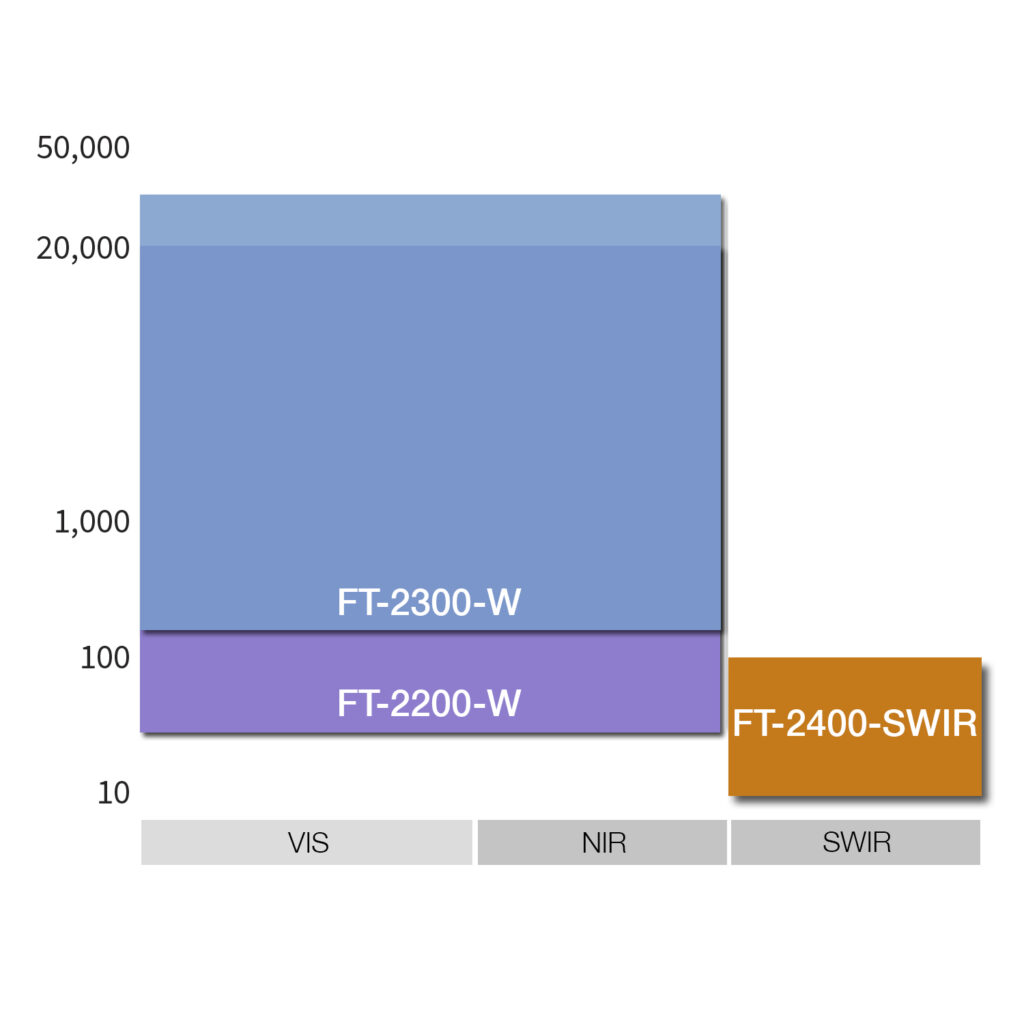

Spectra-FT fine tunable sources are available with options on wavelength range, form factor and output range in three form factors optimized to uniformly fill the sensor field of view.
FT-2200-W
- Spectral Range 380 nm to 1000 nm
- Luminance Port Diameter 75 mm
- Luminance Range 200 to 16,000 cd/m2
- Port Geometry Narrow to 180° FOV
FT-2300-W
- Spectral Range 380 nm to 1000 nm
- Luminance Port Diameter 75 mm
- Luminance Range 2,600 to 25,000 cd/m2
- Port Geometry Narrow to 180° FOV
FT-2400-SWIR
- Spectral Range 900 nm to 1600 nm
- Luminance Port Diameter 75 mm
- Radiance Range 0.1 to 30 W/m2-sr
- Port Geometry Narrow to 180° FOV
