Spectra-PT Power Tunable High Dynamic Range Test and Calibration Reference Sources
Ideal for testing VIS-NIR optical sensor response over a high dynamic range of uniform broadband light.
Source of:
· Broadband Spectral Radiance
· Radiance
· High Uniformity
· Variable Output
Starting Price
$17,870.00
Contact for Pricing
*Select Product Option First
Wide Angle Field of View
For cameras with wide angle FOV’s, Spectra-PT features our WAF (Wide Angle Field Of View) version. Each system comes with a uniformity mapping and accredited spectral radiance and luminance calibrations. A 13.5 cm integrating sphere with a 5 cm exit port, precision automated variable attenuator, and built in photopic response photodetector allows for continuous feedback loop adjustability and good dynamic range up to 50,000 cd/m2.

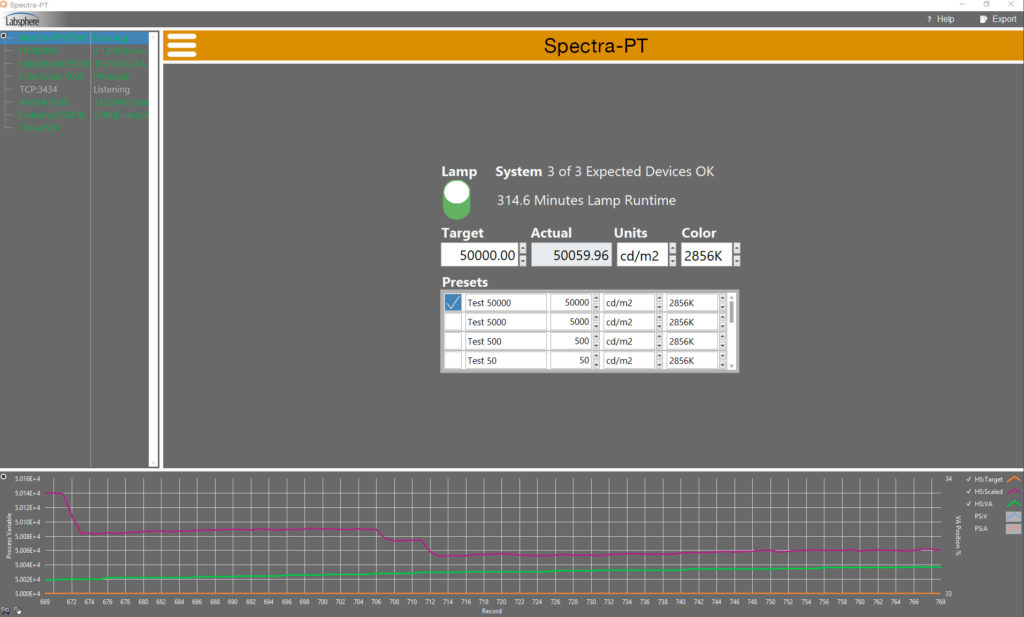

User-friendly Software Interface
Accredited processes for spectral radiance and radiance calibrations are controlled through the PT-1000 control software. Set the desired light level and the PT-1000 control software simply does the rest.
Specifications

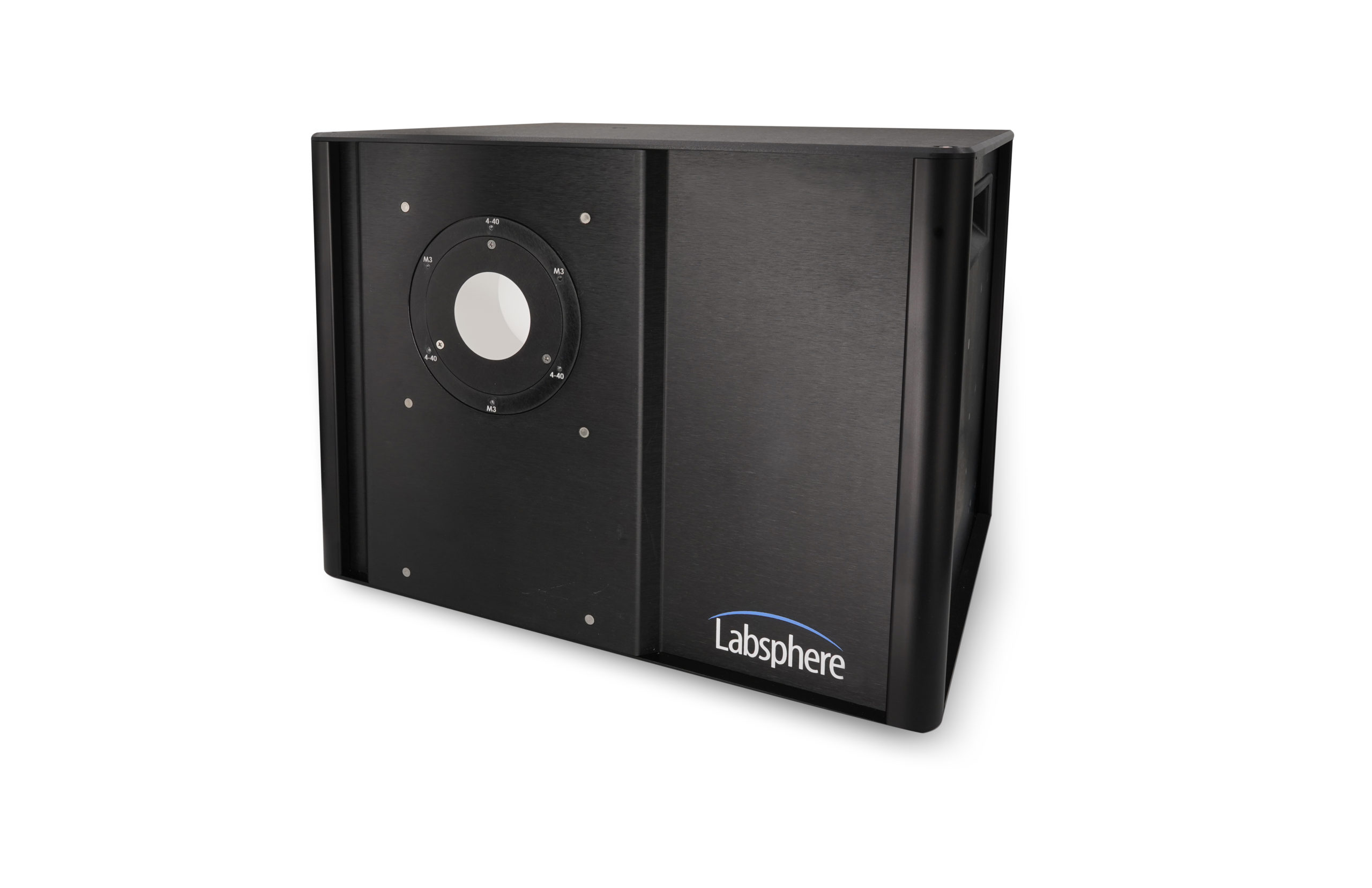

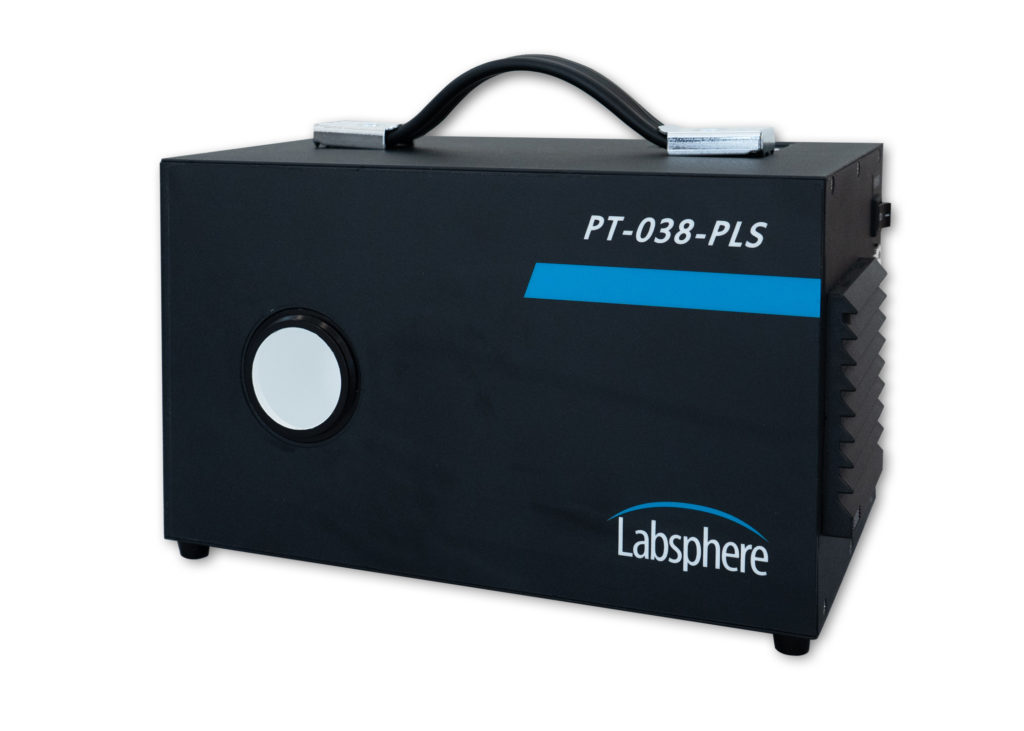

Spectra-PT power tunable sources are available in two form factors
optimized to uniformly fill the sensor field of view.
Integrating Sphere Calibration Sources Spectra PT
- Radiance Port Dimension 5.0 cm
- Radiance Port Geometry Open port
- Luminance Range 0 to 50,000 cd/m2
- Lux Range 0 TO 150,000 lux
Integrating Sphere Calibration Sources Spectra PT
- Radiance Port Dimension 5.0 cm
- Radiance Port Geometry 180o FOV dome
- Luminance Range 0 to 50,000 cd/m2
- Lux Range 0 to 150,000 lux
